Kappa Distribution
The Kappa distribution has power-law tails and is commonly observed in space plasmas.
VelocityDistributionFunctions.KappaDistribution — Type
A Kappa distribution has a nearly Maxwellian core at low energies, and highenergy tails decreasing as suprathermal power laws that can be significantly broader than exponential tails.
See also Pierrard et al. [1] and Pierrard and Lazar [2].
VelocityDistributionFunctions.BiKappaPDF — Type
BiKappaPDF(vth_perp, vth_para, κ, b0=[0, 0, 1])
BiKappaPDF(T_perp::Temperature, T_para::Temperature, κ, b0=[0, 0, 1]; mass = me)Modified BiKappa velocity distribution with kappa index κ, assuming κ-independent temperatures $T_{∥,⟂}$, with magnetic field direction b0.
The distribution can also be parameterized by kappa thermal speeds $v_{th,∥}$ and $v_{th,⟂}$.
\[\begin{aligned} f_κ(𝐯) & ∝ \left[1 + \frac{v_∥^2}{κ v_{\mathrm{th}, ∥}^2} + \frac{v_⟂^2}{κ v_{\mathrm{th}, ⟂}^2}\right]^{- κ - 1} \\ & = \left[1+\frac{m}{k_B (2 κ-3)} \left(\frac{v_∥^2}{T_∥}+\frac{v_⟂^2}{T_⟂}\right) \right]^{-κ-1} \end{aligned}\]
where the normalization constant is
\[\begin{aligned} A_κ &= \left(\frac{1}{π κ}\right)^{3/2} \frac{1}{v_{th,∥} v_{th,⟂}^2} \frac{Γ[κ+1]}{Γ[κ-1/2]} \\ &= \left[\frac{m}{π k_B(2 κ-3)}\right]^{3 / 2} \frac{1}{T_⟂ \sqrt{T_∥}} \frac{Γ[κ+1]}{Γ[κ-1/2]} \end{aligned}\]
See also Kappa, kappa_thermal_speed
using VelocityDistributionFunctions
import VelocityDistributionFunctions as VDFs
using VelocityDistributionFunctions: V
using Random, Unitful, LinearAlgebra
using CairoMakie
# Create Kappa distribution: vth=1.0, κ=3.0
vdf = Kappa(1.0, 3.0)
# Create Kappa distribution with temperature
T = 30000u"K"
vdf2 = Kappa(T, 4.0)
𝐯 = ones(3) .* 1u"m/s"
# Get the PDF value at 𝐯
vdf2(𝐯)3.783396912463927e-19 s^3 m^-3Example: BiKappa (anisotropic kappa)
# Create an anisotropic kappa distribution (different perpendicular/parallel thermal speeds)
κ = 3.0
# Unitful constructor using temperatures (perp/para)
Tperp = 30000u"K"
Tpara = 60000u"K"
vdf_bi = BiKappa(Tperp, Tpara, κ)

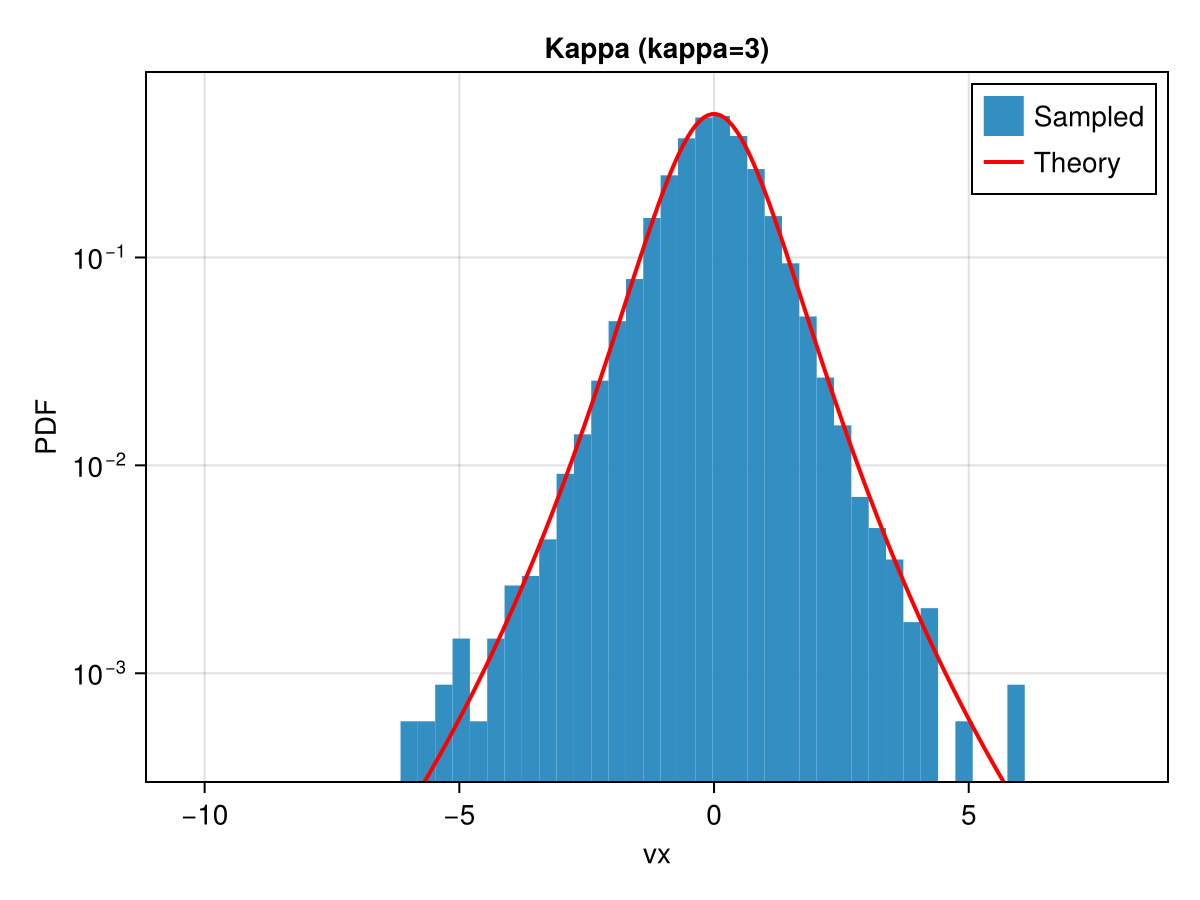

vdf_bi(ones(3) .* 1u"m/s")3.597659432205507e-19 s^3 m^-3Example: Compare 1D projection PDF with theory
Random.seed!(123)
vs = rand(vdf, 10000)
vxs = getindex.(vs, 1)
v_range = range(-8, 8, length=200)
vx_pdf = VDFs._pdf_1d.(vdf, v_range)
let fig = Figure()
ax = Axis(fig[1, 1], title = "Kappa (kappa=3)", xlabel = "vx", ylabel = "PDF", yscale = log10)
hist!(ax, vxs, normalization = :pdf, bins = 48, label = "Sampled")
lines!(ax, v_range, vx_pdf, label = "Theory", color = :red, linewidth = 2)
axislegend(ax)
ylims!(ax, 3e-4, nothing)
fig
end

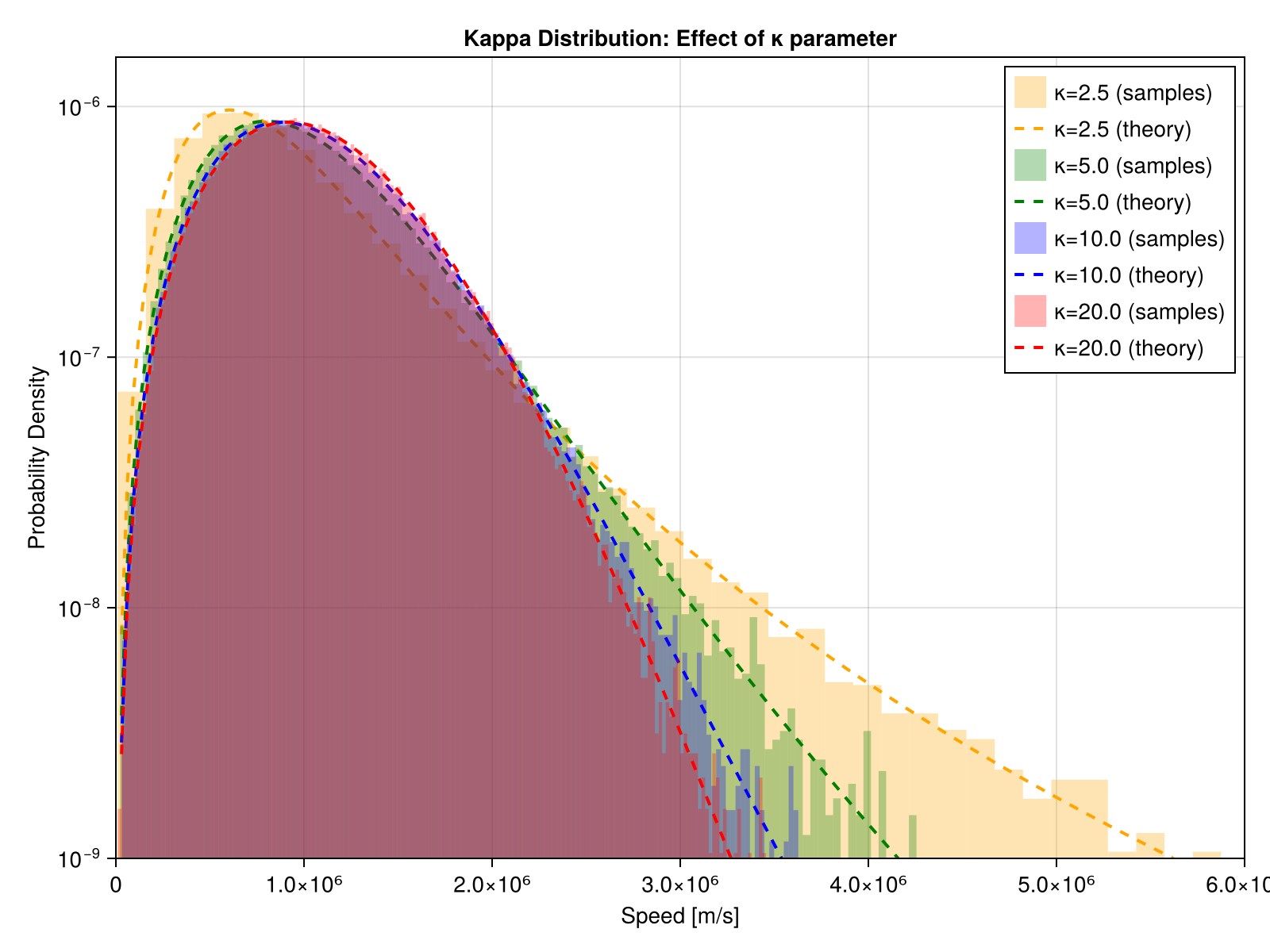

Example: Sampling Kappa Heavy Tails
Here we compare the sampling of different kappa distributions with the same temperature (the second moment of the distribution).
kappas = [2.5, 5.0, 10.0, 20]
colors = [:orange, :green, :blue, :red, ]
fig = Figure(size=(800, 600))
ax = Axis(fig[1, 1],
xlabel="Speed [m/s]",
ylabel="Probability Density",
title="Kappa Distribution: Effect of κ parameter",
yscale=log10)
vmax = 6e6
v_range = range(0, vmax, length=200)
Random.seed!(123)
T = 30000u"K"
for (κ, color) in zip(kappas, colors)
vdf = ustrip(Kappa(T, κ))
n_samples = 100000
samples = rand(vdf, n_samples)
speeds = norm.(samples)
# Theoretical PDF
speed_pdf = vdf.(V.(v_range))
# Plot
hist!(ax, speeds, bins=200, normalization=:pdf,
color=(color, 0.3), label="κ=$κ (samples)")
lines!(ax, v_range, speed_pdf, color=color, linewidth=2,
label="κ=$κ (theory)", linestyle=:dash)
end
axislegend(ax, position=:rt)
xlims!(ax, 0, vmax)
ylims!(ax, 1e-9, nothing)
fig

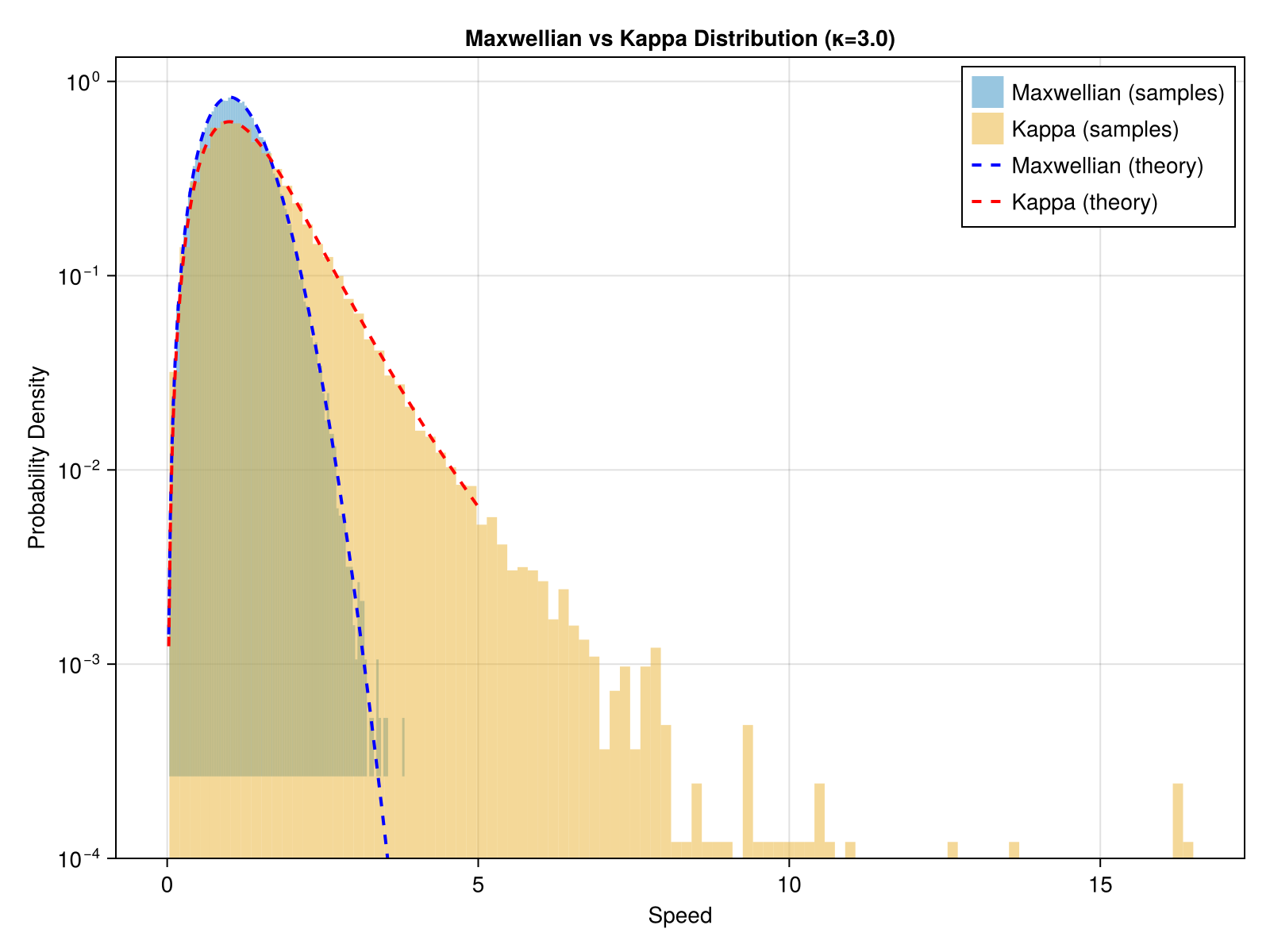

Example: Comparing Maxwellian and Kappa Distributions
d_max = Maxwellian(1.0)
κ = 3.0
d_kappa = Kappa(1.0, κ)
n_samples = 50000
samples_max = rand(d_max, n_samples)
samples_kappa = rand(d_kappa, n_samples)
speeds_max = norm.(samples_max)
speeds_kappa = norm.(samples_kappa)
# Theoretical distributions
v_range = range(0, 5, length=200)
speed_pdf_max = d_max.(V.(v_range))
speed_pdf_kappa = d_kappa.(V.(v_range))
# Plot
let fig = Figure(size=(800, 600))
ax = Axis(fig[1, 1], xlabel="Speed", ylabel="Probability Density", title="Maxwellian vs Kappa Distribution (κ=$κ)", yscale=log10)
hist!(ax, speeds_max, bins=100, normalization=:pdf, label="Maxwellian (samples)", alpha=0.5)
hist!(ax, speeds_kappa, bins=100, normalization=:pdf, label="Kappa (samples)", alpha=0.5)
lines!(ax, v_range, speed_pdf_max, color=:blue, linewidth=2, label="Maxwellian (theory)", linestyle=:dash)
lines!(ax, v_range, speed_pdf_kappa, color=:red, linewidth=2, label="Kappa (theory)", linestyle=:dash)
axislegend(ax, position=:rt)
ylims!(ax, 1e-4, nothing)
fig
end
Math notes
The Theoretical 1D PDF
The 1D projection of the given 3D Kappa distribution is:
\[f_{1D}(v_x) = \frac{\Gamma(\kappa)}{\sqrt{\pi \kappa} v_{th} \Gamma(\kappa - 1/2)} \left(1 + \frac{(v_x - u_{0x})^2}{\kappa v_{th}^2}\right)^{-\kappa}\]
Notes that the power changes from $-(\kappa + 1)$ in 3D to $-\kappa$ in 1D.
Mathematical Derivation
To find the 1D PDF $f(v_x)$, we must integrate out the other velocity components ($v_y$ and $v_z$). Let $\mathbf{v} - \mathbf{u}_0 = (u_x, u_y, u_z)$. We integrate over $u_y$ and $u_z$:
\[f(v_x) = \iint_{-\infty}^{\infty} A_3 \left(1 + \frac{u_x^2 + u_y^2 + u_z^2}{\kappa v_{th}^2}\right)^{-(\kappa + 1)} du_y \, du_z\]
After grouping the $x$ terms into a constant $C$ (relative to the integration variables $u_y, u_z$): $C = 1 + \frac{u_x^2}{\kappa v_{th}^2}$
The integrand becomes: $\left(C + \frac{u_y^2 + u_z^2}{\kappa v_{th}^2}\right)^{-(\kappa + 1)} = C^{-(\kappa+1)} \left(1 + \frac{u_y^2 + u_z^2}{C \kappa v_{th}^2}\right)^{-(\kappa + 1)}$
1. Perform the Integration
We convert the $u_y, u_z$ plane to polar coordinates ($r, \theta$) where $r^2 = u_y^2 + u_z^2$. The area element is $2\pi r dr$. Let $a^2 = C \kappa v_{th}^2$.
\[I = \int_{0}^{\infty} \left(1 + \frac{r^2}{a^2}\right)^{-(\kappa + 1)} 2\pi r \, dr\]
Using the substitution $w = 1 + \frac{r^2}{a^2}$, we get $dw = \frac{2r}{a^2} dr \implies 2r dr = a^2 dw$.
\[I = \pi a^2 \int_{1}^{\infty} w^{-(\kappa + 1)} \, dw = \pi a^2 \left[ \frac{w^{-\kappa}}{-\kappa} \right]_{1}^{\infty} = \frac{\pi a^2}{\kappa}\]
Substitute $a^2 = C \kappa v_{th}^2$ back:
\[I = \frac{\pi (C \kappa v_{th}^2)}{\kappa} = \pi v_{th}^2 C\]
3. Combine and Simplify Constants
Now substitute the integral result $I$ and the constant term $C^{-(\kappa+1)}$ back into the expression for $f(v_x)$:
\[f(v_x) = A_3 \cdot C^{-(\kappa+1)} \cdot I = A_3 \pi v_{th}^2 C^{-\kappa}\]
Now expand $A_3$ and simplify:
\[f(v_x) = \left[ \frac{\Gamma(\kappa + 1)}{(\pi \kappa v_{th}^2)^{3/2} \Gamma(\kappa - 1/2)} \right] \pi v_{th}^2 \left(1 + \frac{u_x^2}{\kappa v_{th}^2}\right)^{-\kappa}\]
Isolate the constants:
\[\text{Coeff} = \frac{\Gamma(\kappa + 1) \pi v_{th}^2}{\pi^{3/2} \kappa^{3/2} v_{th}^3 \Gamma(\kappa - 1/2)} = \frac{\Gamma(\kappa + 1)}{\sqrt{\pi} \kappa^{3/2} v_{th} \Gamma(\kappa - 1/2)}\]
Using the property $\Gamma(\kappa + 1) = \kappa \Gamma(\kappa)$, we cancel one $\kappa$:
\[\text{Coeff} = \frac{\kappa \Gamma(\kappa)}{\sqrt{\pi} \kappa \sqrt{\kappa} v_{th} \Gamma(\kappa - 1/2)} = \frac{\Gamma(\kappa)}{\sqrt{\pi \kappa} v_{th} \Gamma(\kappa - 1/2)}\]
This yields the final result.
