Velocity Dispersion Analysis (VDA)

Velocity Dispersion Analysis is a technique for determining solar particle release times and propagation characteristics by analyzing the energy-dependent arrival times of solar energetic particles (SEPs).

Physical Principle

Setup

using SolarEnergeticParticle
using Dates
using SpacePhysicsMakie, CairoMakie
using TimeseriesUtilities

Load Multi-Energy SEP Data

First, let's load SEP data:

# Load SOHO ERNE data for VDA analysis
tmin = DateTime(2021, 10, 28, 14)
tmax = DateTime(2021, 10, 29)
background_range = (DateTime(2021, 10, 28, 14), DateTime(2021, 10, 28, 15))

data = get_data("SOLO_L2_EPD-HET-SUN-RATES", tmin, tmax)
(H_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 22.934027 8.814197 … 0.1875847 0.0; 25.482252 14.690327 … 0.28137705 0.0], H_HCad_Flux = Float32[0.0 0.0 0.0 0.0; 0.0 0.0 0.0 0.0; … ; 11.62419 6.9693346 2.2502859 0.42568406; 11.62419 7.467144 1.8002286 0.30406004], Electron_Flux = Float32[0.0 0.0 0.0 0.0; 0.0 0.0 0.0 0.0; … ; 372.24933 22.57773 2.797954 0.39343345; 227.4857 9.67617 5.595908 0.0], Elec_HE_Flux = Float32[0.0; 0.0; … ; 0.043719746; 0.10492739;;], He3_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], He4_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 1.4397854 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], C_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], N_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], O_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], Fe_Flux = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0])
Electron_Flux = tmean(data.Electron_Flux, Minute(3))
H_Flux = tmean(data.H_Flux, Minute(3))
faxs = tplot([Electron_Flux, select_channel(H_Flux, 1:4:36)])
ylims!(faxs.axes[1], 5e-2, 2e3)
ylims!(faxs.axes[2], 1e-2, 1e2)
faxs

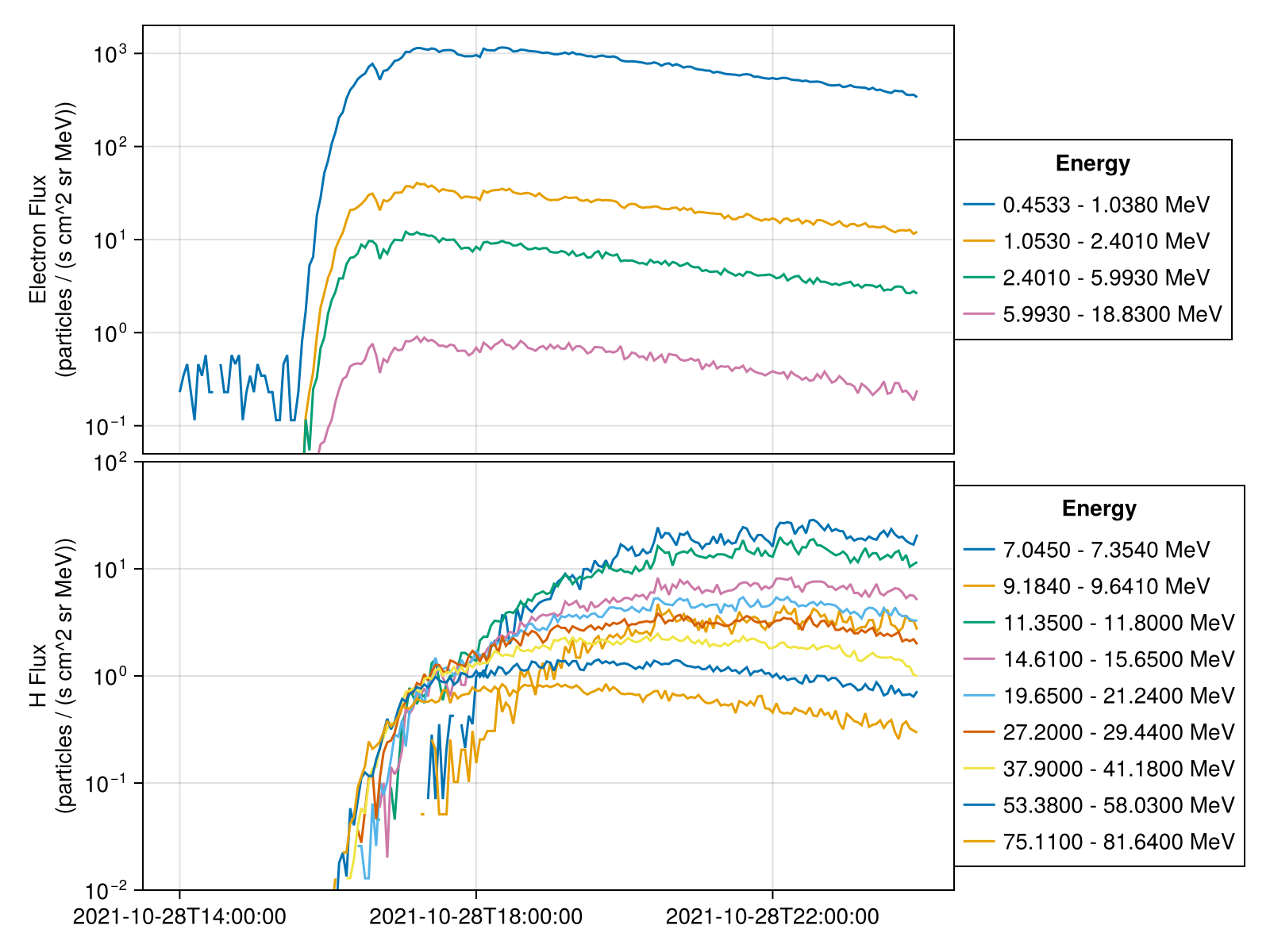

Example block output

Multi-Channel Onset Detection

Detect onsets across multiple energy channels using sigma onset detection:

vda_proton = vda(tmean(data.H_Flux, Minute(5)), background_range; onset = (N=3, method=:sigma))

println("VDA Results:")
println("Release time: $(vda_proton.release_time)")
println("Path length: $(round(vda_proton.path_length_au, digits=2)) AU")
VDA Results:
Release time: 2021-10-28T15:19:47.322
Path length: 1.56 AU

VDA Visualization

function plot_vda_analysis!(ax, vda_result)
    onsets = vda_result.onset_times
    energies = vda_result.energies

    release_time = vda_result.release_time

    # Plot data points
    scatter!(ax, vda_result.inverse_betas, onsets; label="Observed Onsets")

    # Plot linear fit
    fit_times = [unix2datetime(vda_result.intercept + vda_result.slope * inv_beta)
                 for inv_beta in vda_result.inverse_betas]
    lines!(ax, vda_result.inverse_betas, fit_times; linewidth=3, label="Linear Fit (Path Length: $(round(vda_result.path_length_au, digits=2)) AU)")
    # Add release time line
    hlines!(ax, Dates.value(release_time), linestyle=:dash, label="Release Time $release_time")
end

function plot_vda_analysis_error_bands!(ax, vda_result)
    upper_fit = [unix2datetime(vda_result.intercept + 2*vda_result.intercept_error +
                              vda_result.slope * inv_beta) for inv_beta in vda_result.inverse_betas]
    lower_fit = [unix2datetime(vda_result.intercept - 2*vda_result.intercept_error +
                              vda_result.slope * inv_beta) for inv_beta in vda_result.inverse_betas]
    band!(ax, vda_result.inverse_betas, lower_fit, upper_fit, color=(:red, 0.2), label="95% Confidence")
end

# Create the VDA plot
fig = Figure(size=(800, 600))
ax = Axis(fig[1, 1],
            xlabel="Inverse Beta (β⁻¹)",
            ylabel="Onset Time",
            title="SOHO ERNE SEP Event - October 28, 2021")
plot_vda_analysis!(ax, vda_proton)

fig

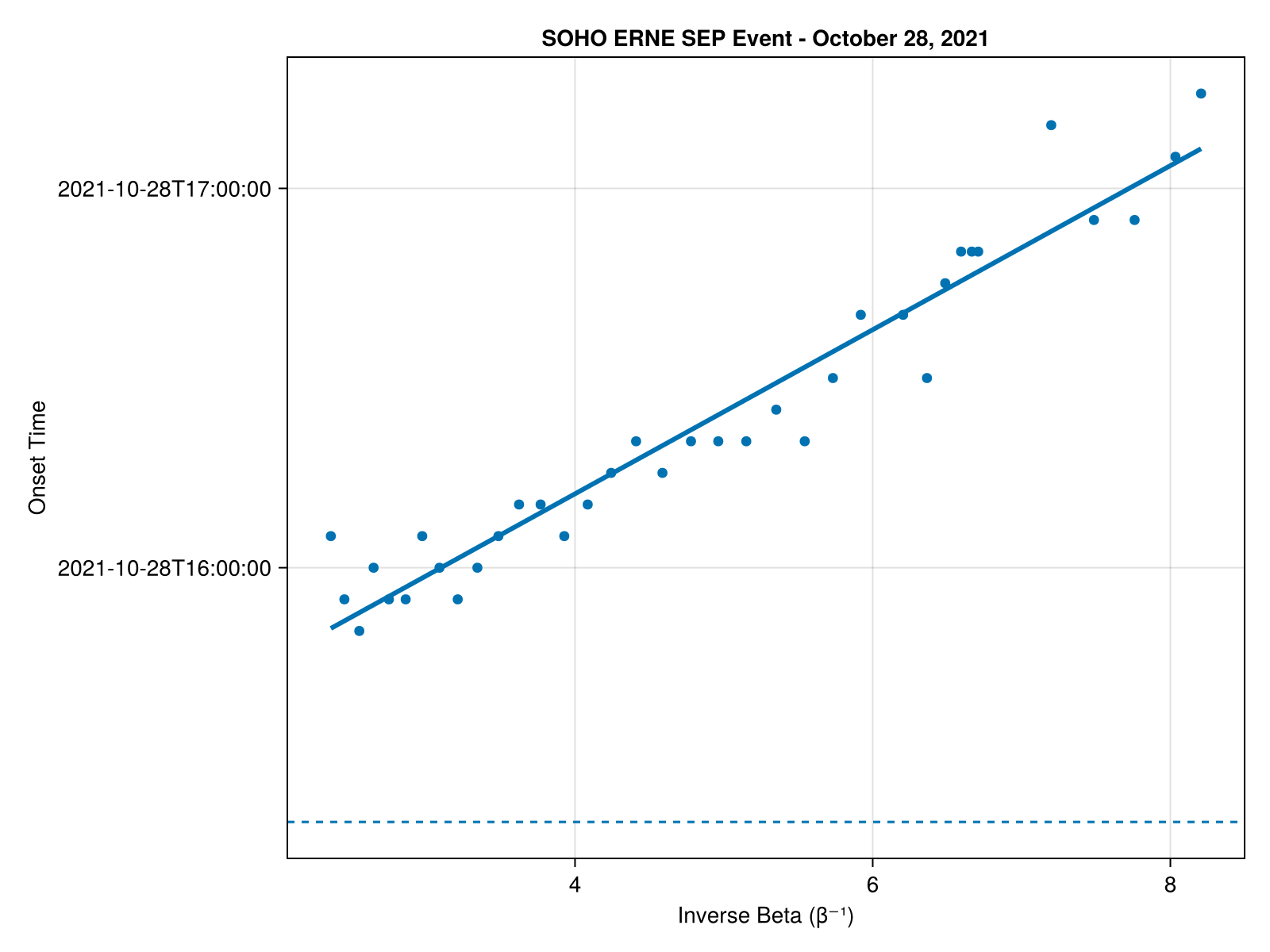

Example block output

Different Particle Species

vda_electron = vda(tmean(data.Electron_Flux, Minute(1)), background_range; onset = (N=10, ), particle = :electron)

println("Electron VDA:")
println("Release time: $(vda_electron.release_time)")
println("Path length: $(round(vda_electron.path_length_au, digits=2)) AU")

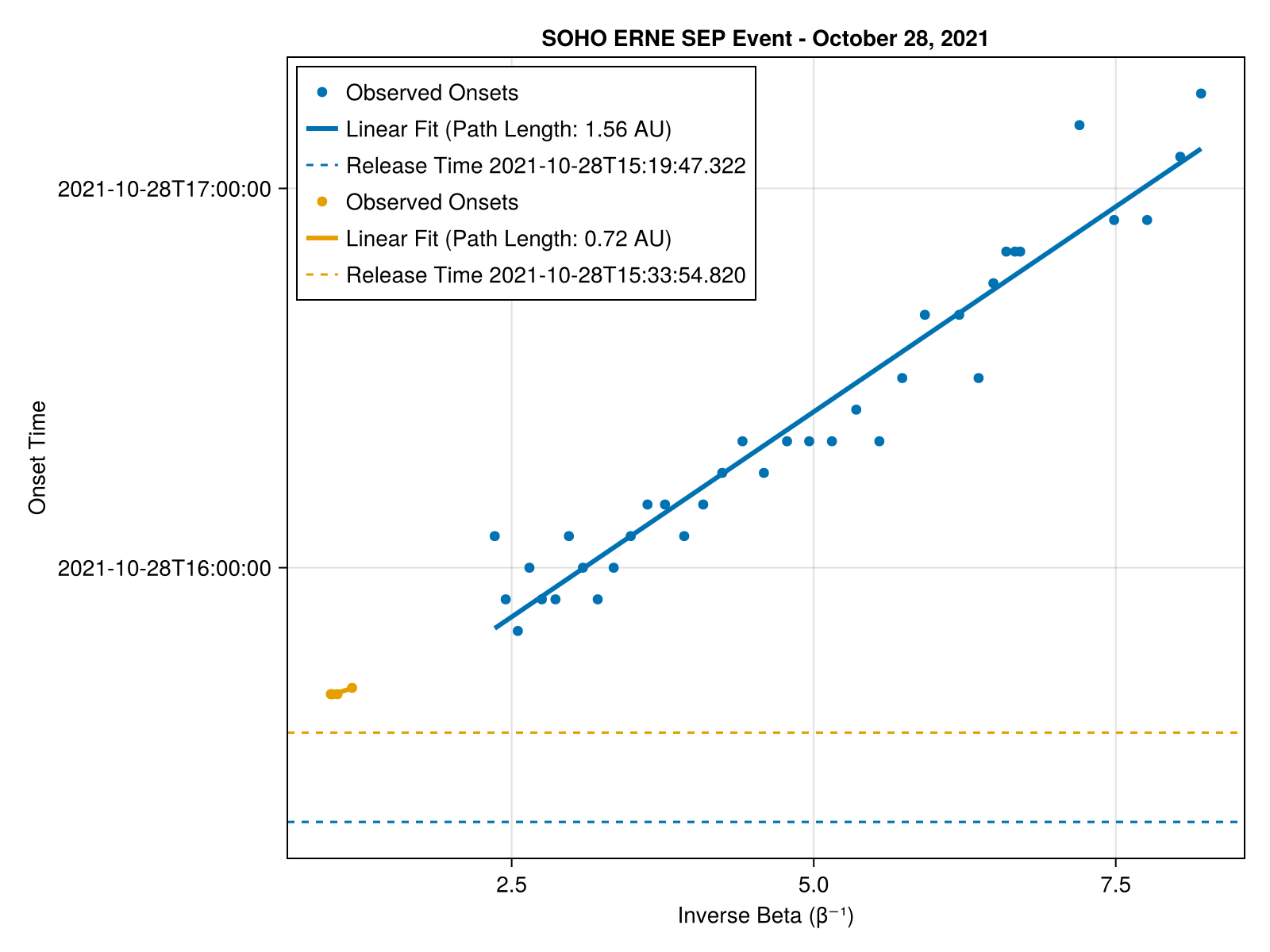

plot_vda_analysis!(ax, vda_electron)
axislegend(; position=:lt)

fig
Example block output
