Parker Solar Probe (PSP)

Overview

The PSP data loader provides access to energetic particle data from the Integrated Science Investigation of the Sun (ISOIS) instrument suite aboard the Parker Solar Probe spacecraft.

References

Basic Usage

List available datasets for PSP ISOIS

using SolarEnergeticParticle

datasets = get_datasets(:PSP, :ISOIS)
17-element Vector{String}:
 "PSP_ISOIS_L2-SUMMARY"
 "PSP_ISOIS_L2-EPHEM"
 "PSP_ISOIS-EPIHI_L2-SECOND-RATES"
 "PSP_ISOIS-EPIHI_L2-HET-RATES10"
 "PSP_ISOIS-EPIHI_L2-HET-RATES60"
 "PSP_ISOIS-EPIHI_L2-HET-RATES300"
 "PSP_ISOIS-EPIHI_L2-HET-RATES3600"
 "PSP_ISOIS-EPIHI_L2-LET1-RATES10"
 "PSP_ISOIS-EPIHI_L2-LET1-RATES60"
 "PSP_ISOIS-EPIHI_L2-LET1-RATES300"
 "PSP_ISOIS-EPIHI_L2-LET1-RATES3600"
 "PSP_ISOIS-EPIHI_L2-LET2-RATES10"
 "PSP_ISOIS-EPIHI_L2-LET2-RATES60"
 "PSP_ISOIS-EPIHI_L2-LET2-RATES300"
 "PSP_ISOIS-EPIHI_L2-LET2-RATES3600"
 "PSP_ISOIS-EPILO_L2-IC"
 "PSP_ISOIS-EPILO_L2-PE"

Get EPIHI data for a solar particle event

dataset = "PSP_ISOIS-EPIHI_L2-HET-RATES60"
tmin = "2021/10/9"
tmax = "2021/10/10"
data = get_data(dataset, tmin, tmax; verbose=true)

# Or only get specific variables
data = get_data(dataset, ("A_H_Flux", "A_Electrons_Rate"), tmin, tmax)
(A_H_Flux = Float32[NaN 0.0 … NaN NaN; NaN 0.0 … NaN NaN; … ; NaN 0.0 … NaN NaN; NaN 0.0 … NaN NaN], A_Electrons_Rate = Float32[0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0])
# Print energy channel information
foreach(println, data.A_H_Flux.metadata["LABL_PTR_1"])
  6.7 -   8.0 MeV
  8.0 -   9.5 MeV
  9.5 -  11.3 MeV
 11.3 -  13.5 MeV
 13.5 -  16.0 MeV
 16.0 -  19.0 MeV
 19.0 -  22.6 MeV
 22.6 -  26.9 MeV
 26.9 -  32.0 MeV
 32.0 -  38.1 MeV
 38.1 -  45.3 MeV
 45.3 -  53.8 MeV
 53.8 -  64.0 MeV
 64.0 -  76.1 MeV
 76.1 -  90.5 MeV

Advanced Usage

Time Series Analysis

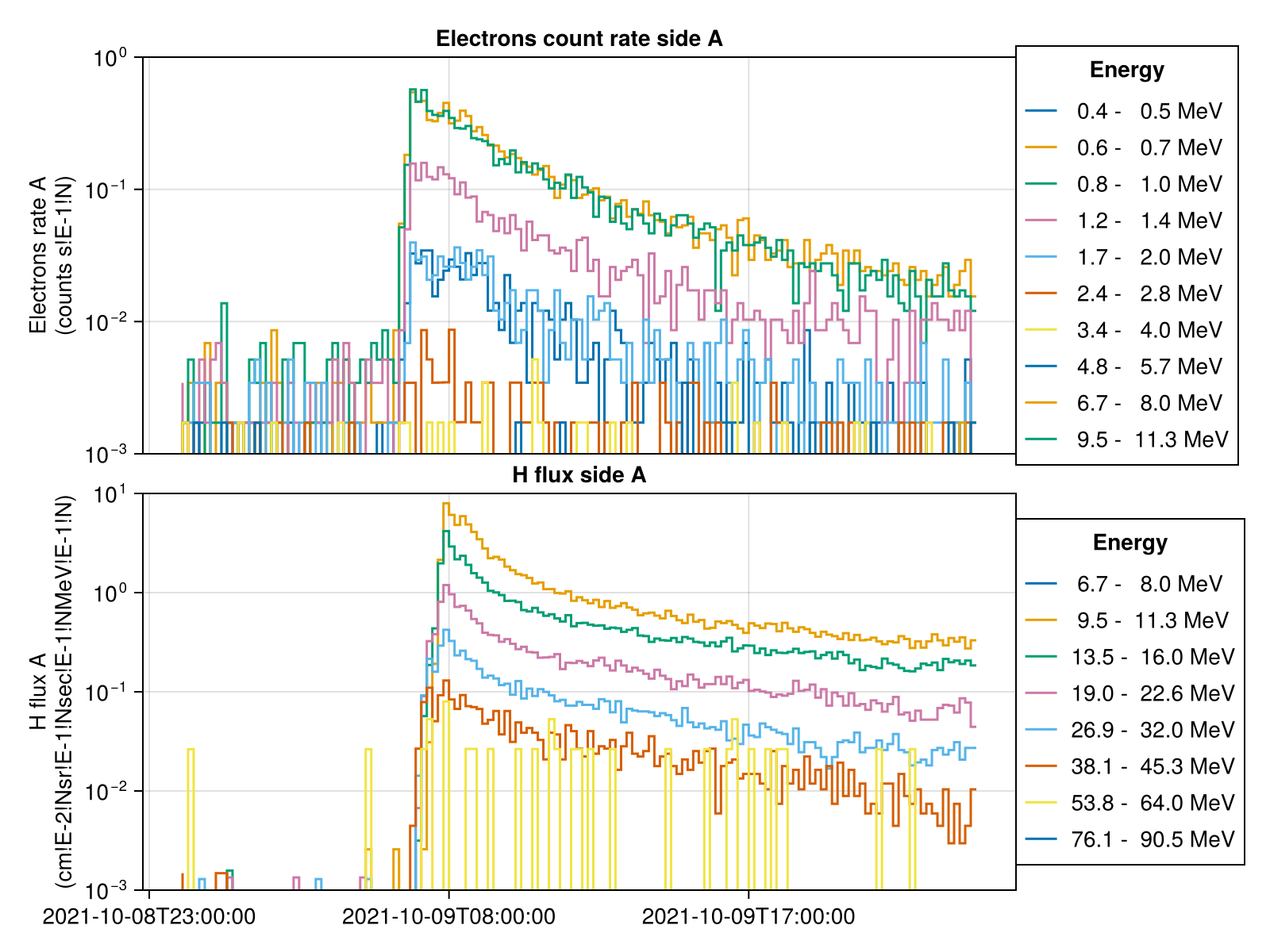

Here we plot the proton fluxes and electron rates of A side every 2 channels averaged over 10 minutes.

using SpacePhysicsMakie, CairoMakie
using TimeseriesUtilities, Dates

begin
    tvars2plot = map([data.A_Electrons_Rate, data.A_H_Flux]) do x
        replace!(tmean(select_channel(x, isodd), Minute(10)), 0 => eps())
    end
    f = tplot(tvars2plot; plottype=Stairs, add_title=true)
    ylims!(f.axes[1], 1e-3, 1e0)
    ylims!(f.axes[2], 1e-3, 1e1)
    f
end
Example block output

Example: Solar Particle Event Analysis

using SolarEnergeticParticle, CairoMakie, Statistics

function analyze_sep_event(start_date, end_date)
    # Load PSP EPIHI data
    result = psp_load("PSP_ISOIS-EPIHI_L2-HET-RATES60",
                      start_date, end_date)

    # Calculate background levels (first 20% of data)
    n_background = div(nrow(result.data), 5)
    background_flux = mean(skipmissing(result.data.flux_channel_1[1:n_background]))

    # Find enhancement periods (flux > 3x background)
    enhanced = result.data.flux_channel_1 .> 3 * background_flux

    # Create figure
    fig = Figure(resolution = (1000, 700))
    ax = Axis(fig[1, 1],
              xlabel = "Time (UTC)",
              ylabel = "Proton Flux (1/cm²/s/sr/MeV)",
              title = "PSP Solar Particle Event Analysis",
              yscale = log10)

    # Plot main data
    lines!(ax, result.data.datetime, result.data.flux_channel_1,
           label = "0.5-1.0 MeV protons", linewidth = 2, color = :blue)

    # Add background lines
    hlines!(ax, [background_flux], label = "Background",
            linestyle = :dash, color = :gray, linewidth = 2)
    hlines!(ax, [3*background_flux], label = "3x Background",
            linestyle = :dot, color = :red, linewidth = 2)

    # Highlight enhancement periods
    enhanced_times = result.data.datetime[enhanced]
    if !isempty(enhanced_times)
        scatter!(ax, enhanced_times, result.data.flux_channel_1[enhanced],
                label = "Enhanced periods", markersize = 8,
                color = (:red, 0.7))
    end

    axislegend(ax, position = :rt)
    fig
end

# Analyze April 2021 event
fig = analyze_sep_event("2021/04/28", "2021/05/02")
display(fig)
