Quickstart

We provide a few ways to load data, please see Data for a detailed explanation of the data formats and retrieval methods.

Get data with Speasy

Speasy.jl provides functions to load data from main Space Physics WebServices (CDA,SSC,AMDA,..).

It could be installed using using Pkg; Pkg.add("Speasy").

using Speasy: get_data
using CairoMakie, SpacePhysicsMakie

# da = get_data("amda/imf", "2016-6-2", "2016-6-5")
da = get_data("cda/OMNI_HRO_1MIN/Pressure", "2016-6-2", "2016-6-3"; sanitize=true)
SpeasyVariable{Float32, 2}: Pressure
  Time Range: 2016-06-02T00:00:00.000000000 to 2016-06-02T23:59:00.000000000
  Units: nPa
  Size: (1440, 1)
  Memory Usage: 19.660 KiB
  Metadata:
    FILLVAL: Any[99.98999786376953]
    FIELDNAM: Flow pressure
    VALIDMAX: Any[100.0]
    SCALEMAX: Any[100.0]
    CATDESC: Flow pressure (nPa)
    VALIDMIN: Any[0.0]
    DISPLAY_TYPE: time_series
    UNITS: nPa
    VAR_NOTES: Derived parameters are obtained from the following equations. Flow pressure = (2*10**-6)*Np*Vp**2 nPa (Np in cm**-3, Vp in km/s, subscript p for proton)
    DEPEND_0: Epoch
    BIN_LOCATION: 0.0
    FORMAT: F5.2
    VAR_TYPE: data
    SCALEMIN: Any[0.0]
    LABLAXIS: Flow pressure

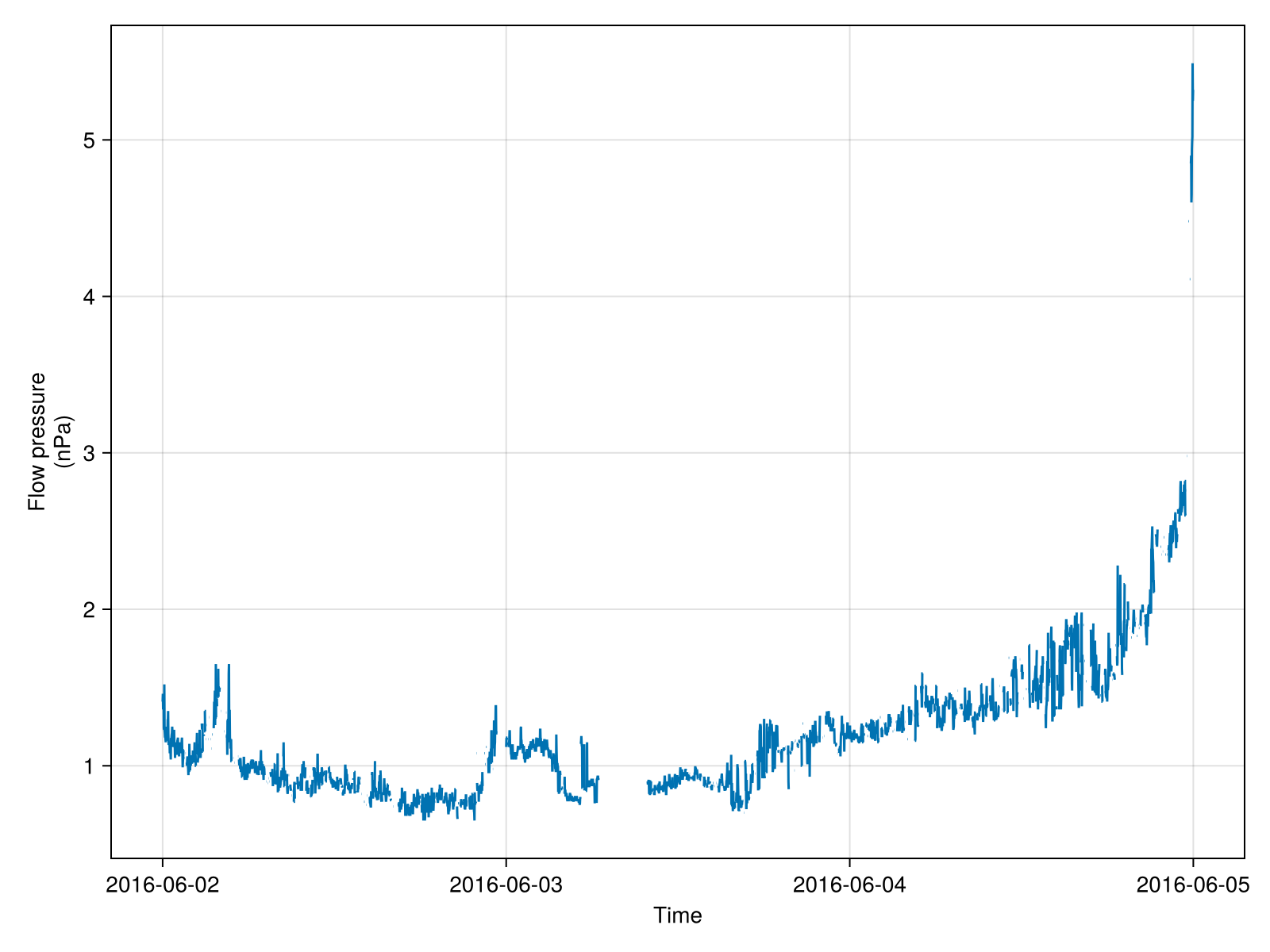

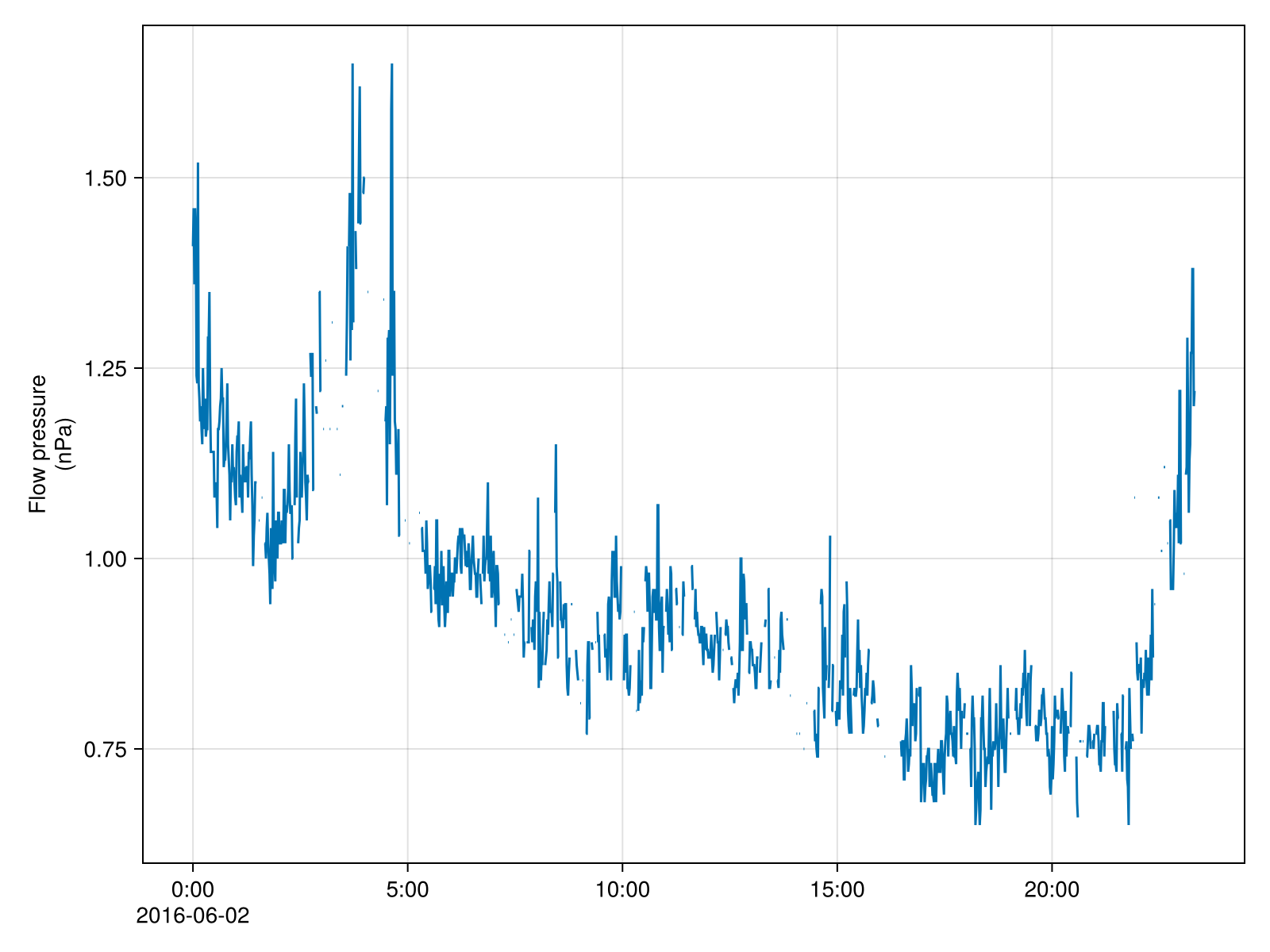

Plot the data

tplot(da)
Example block output

Get data using Heliophysics Application Programmer's Interface (HAPI)

HAPIClient.jl provides functions to load data from HAPI-compliant servers.

It could be installed using using Pkg; Pkg.add("HAPIClient").

using HAPIClient: get_data

da = get_data("CDAWeb/AC_H0_MFI/Magnitude,BGSEc", "2001-1-2", "2001-1-2T6")
HAPIVariables: CDAWeb/AC_H0_MFI
  Magnitude [Time Range: 2001-01-02T00:00:15 to 2001-01-02T05:59:59, Units: nT, Size: (1350,)]
  BGSEc [Time Range: 2001-01-02T00:00:15 to 2001-01-02T05:59:59, Units: nT, Size: (1350, 3)]
Metadata - Dict{String, Any} with 8 entries:
  "stopDate"    => "2025-05-29T23:59:58Z"
  "resourceURL" => "https://cdaweb.gsfc.nasa.gov/misc/NotesA.html#AC_H0_MFI"
  "uri"         => URI("https://cdaweb.gsfc.nasa.gov/hapi/data?time.min=2001-01…
  "parameters"  => Any[Dict{String, Any}("length"=>24, "name"=>"Time", "units"=…
  "startDate"   => "1997-09-02T00:00:12Z"
  "status"      => Dict{String, Any}("message"=>"OK", "code"=>1200)
  "HAPI"        => "2.0"
  "contact"     => "N. Ness @ Bartol Research Institute"

Plot the data

using CairoMakie, SpacePhysicsMakie

tplot(da)
Example block output

Get data with PySPEDAS

PySPEDAS.jl provides a Julia interface to the PySPEDAS Python package, offering a similar API for Julia users to utilize the existing Python routines.

It could be installed using using Pkg; Pkg.add("PySPEDAS").

using SpacePhysicsMakie: tplot
using PySPEDAS.Projects
using DimensionalData
using CairoMakie

da = themis.fgm(["2020-04-20/06:00", "2020-04-20/08:00"], time_clip=true, probe="d");
keys(da)
# Same as more verbose `pyspedas.projects.themis.fgm(...)`
(:thd_fgs_btotal, :thd_fgs_gse, :thd_fgs_gsm, :thd_fgs_dsl, :thd_fgl_btotal, :thd_fgl_gse, :thd_fgl_gsm, :thd_fgl_dsl, :thd_fgl_ssl, :thd_fgh_btotal, :thd_fgh_gse, :thd_fgh_gsm, :thd_fgh_dsl, :thd_fgh_ssl, :thd_fge_btotal, :thd_fge_gse, :thd_fge_gsm, :thd_fge_dsl, :thd_fge_ssl)

Plot the data

f = Figure()
tplot(f[1,1], [da.thd_fgs_gsm, da.thd_fgs_btotal])
tplot(f[2,1], [DimArray(da.thd_fgl_gsm), DimArray(da.thd_fgl_btotal)])
f
Example block output
