Case: R-, L-, and P-mode waves

This page reproduces the “case 1” benchmark (Cattaert et al. [7]) in BO-PBK Bai and Xie [8] for the R-, L-, and P-mode branches.

The configuration is a single electron population with a strongly non-Maxwellian parallel kappa index (κ∥ = 1) and nearly Maxwellian perpendicular index (κ⟂ = 200), with oblique propagation at $θ = 30°$.

Setup

using PlasmaBO
using PlasmaBO: q, me

B0 = 1.0e-6          # [Tesla]
θ = deg2rad(30)

n = 2.43e6           # [m^-3]
T = 2555.0           # [eV]
κz = 1.0
κx = 200.0

electron = BiKappa2(:e, n, κz, κx, T; sigma = 0.0)
wce = abs(B0 * q / me)
ρce = electron.vtp / wce
kn = 1 / ρce  # so that k/kn = kρce

kρ_scan = range(1.0e-4, 0.3; length = 80)
ks = kρ_scan .* kn
5.881508223911365e-7:2.232739640950656e-5:0.0017644524671734095

Analytic PBK (BO-PBK) solver

Solve the same case with the analytic PBK (BO-PBK) solver:

julia> sol_pbk = solve(electron, B0, ks, θ, BOPBK);
using CairoMakie

f, axs = plot(sol_pbk, kn, wce)
ylims!(axs[1], 0, 3)
f

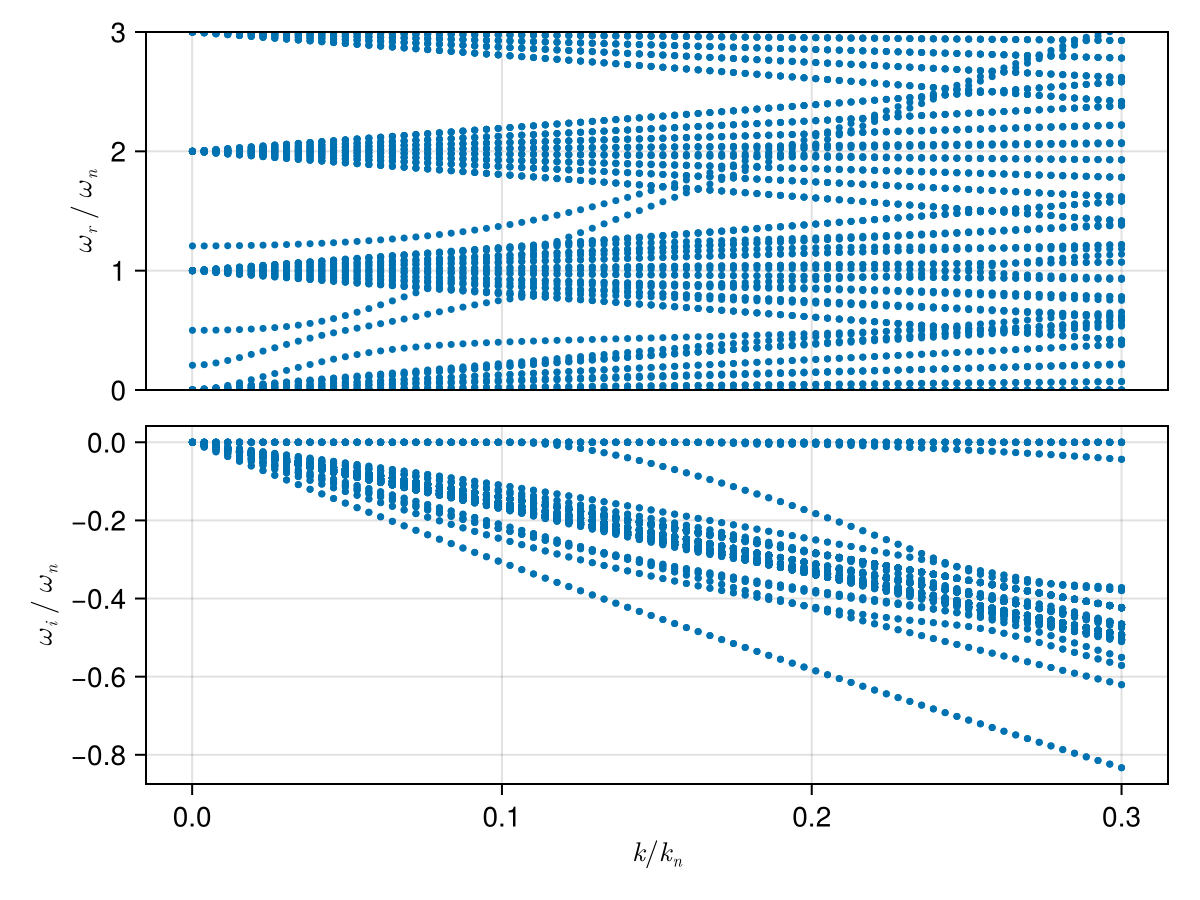

Example block output

Plot the tracked PBK branches:

Seeds at kρce = 0.1 are used to identify the branches: upper R-X, O(P), L-X, lower R-X

seed_kρ = 0.1
seeds_ω = [1.37366, 1.07271, 0.75519, 0.39861] .* wce

initial_points = [(seed_kρ * kn, ω0) for ω0 in seeds_ω]
branches_pbk = track.(sol_pbk, initial_points)

f, (ax1, ax2) = plot_branches(branches_pbk, kn, wce)
ylims!(ax1, nothing, 3)
ylims!(ax2, -0.01, 0.001)
f

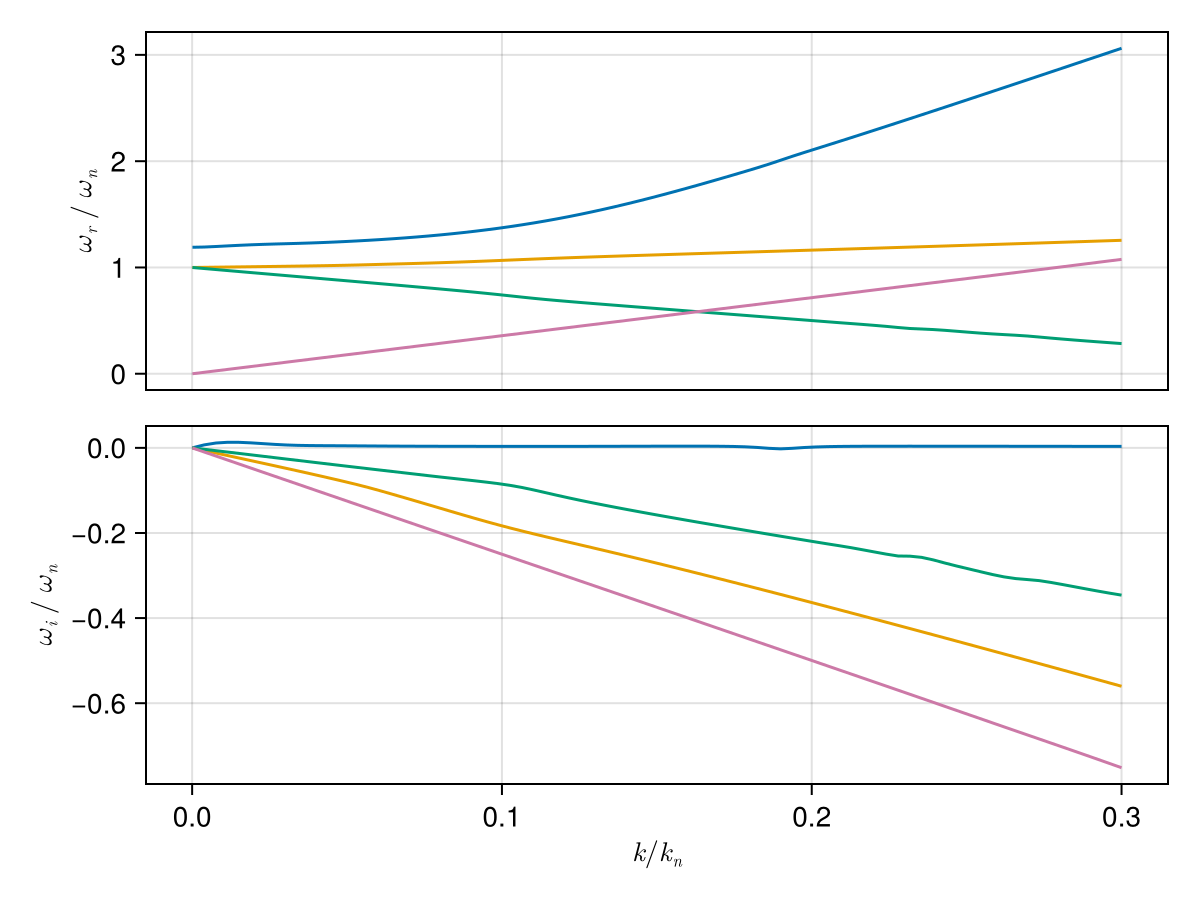

Example block output

General HH solver

Solve the same case with the general Hermite-Hermite (HH) basis solver:

using CairoMakie

sol_HH = solve(electron, B0, ks, θ; N = 4, J = 16)
branches_HH = track.(sol_HH, initial_points)

f, axs = plot(sol_HH, kn, wce)
ylims!(axs[1], 0, 3)
f

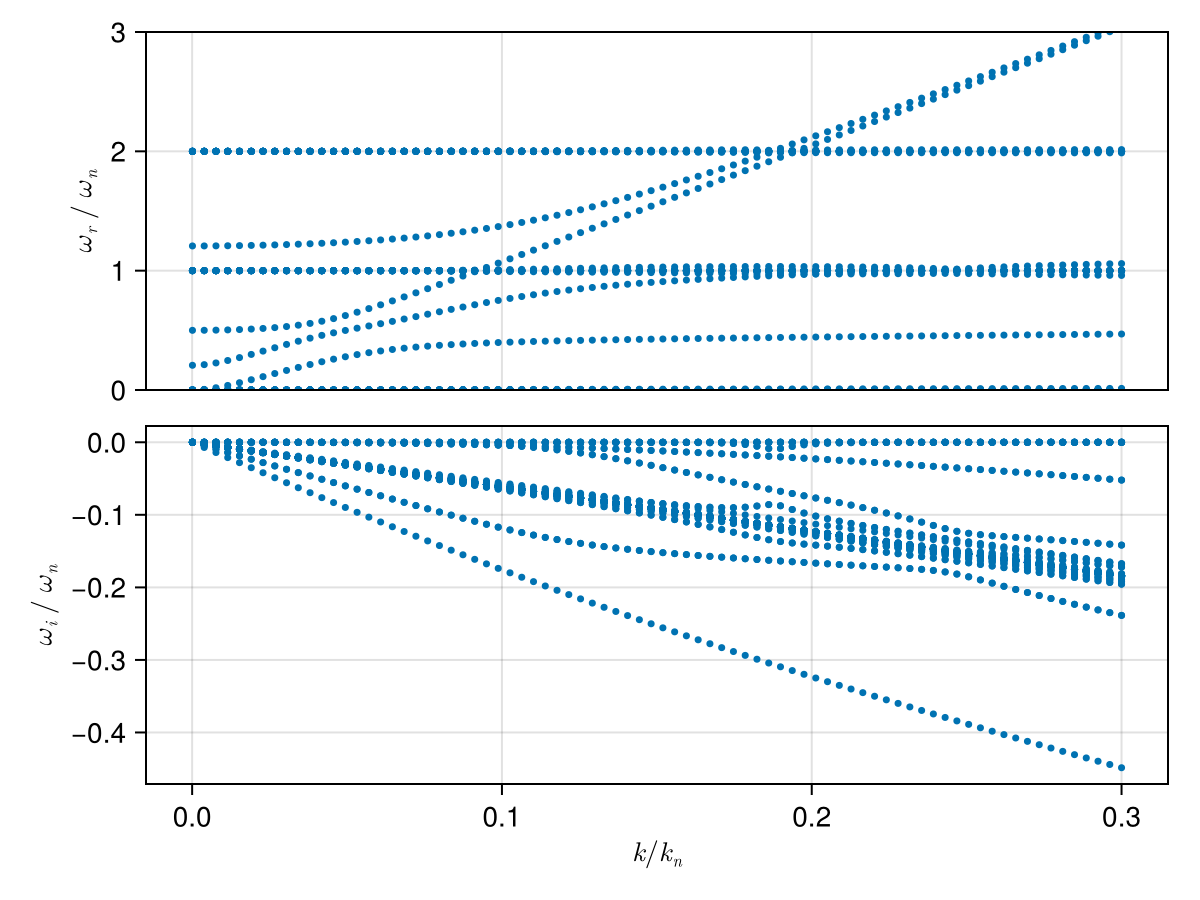

Example block output

Plot the tracked branches

plot_branches(branches_HH, kn, wce)

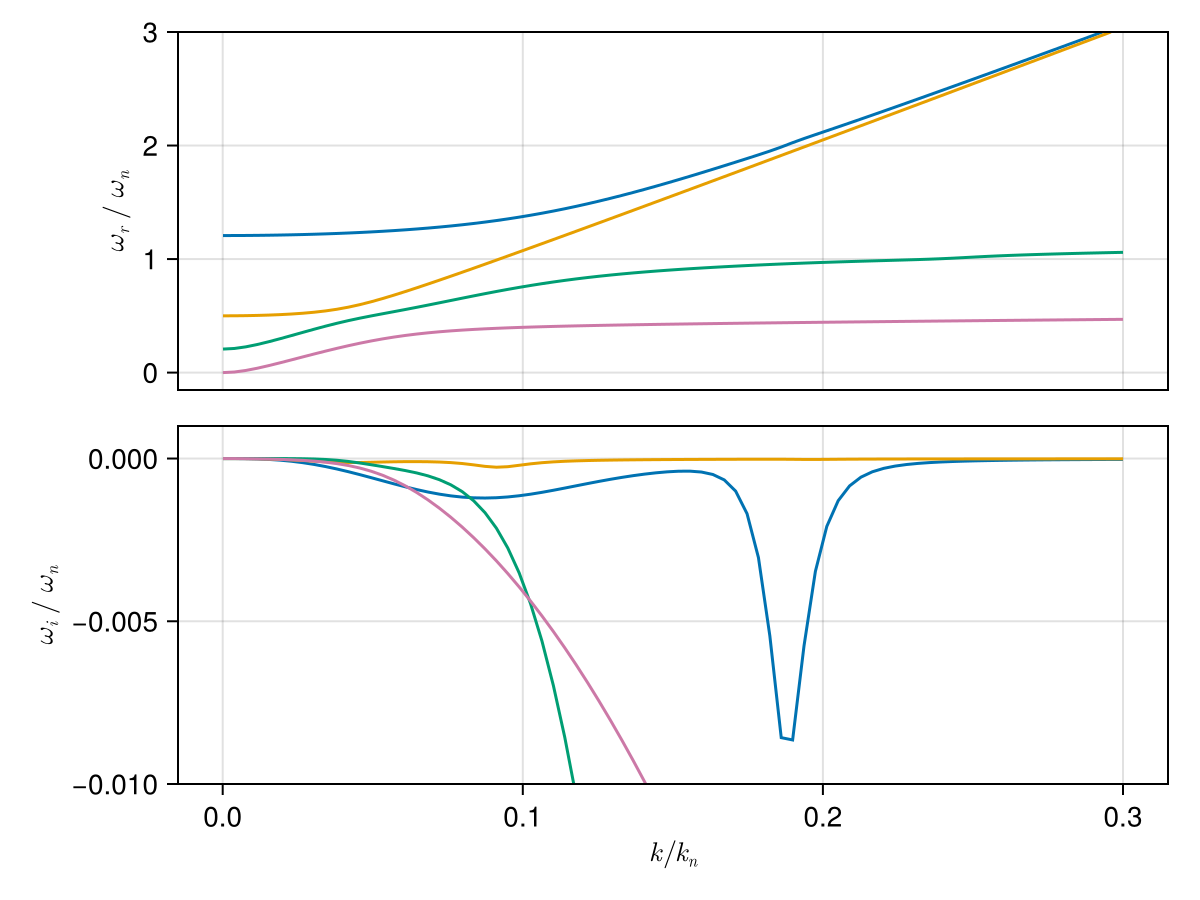

Example block output

We can see that the results from the HH solver is very different than the PBK solver. It does not yield the same branches as the PBK solver due to the small parallel kappa index.

As a comparison, we solve it for a Maxwellian electron population:

electron = Maxwellian(:e, n, T)
sol_M = solve([electron], B0, ks, θ; N = 3)

f, axs = plot(sol_M, kn, wce)
ylims!(axs[1], 0, 3)
f

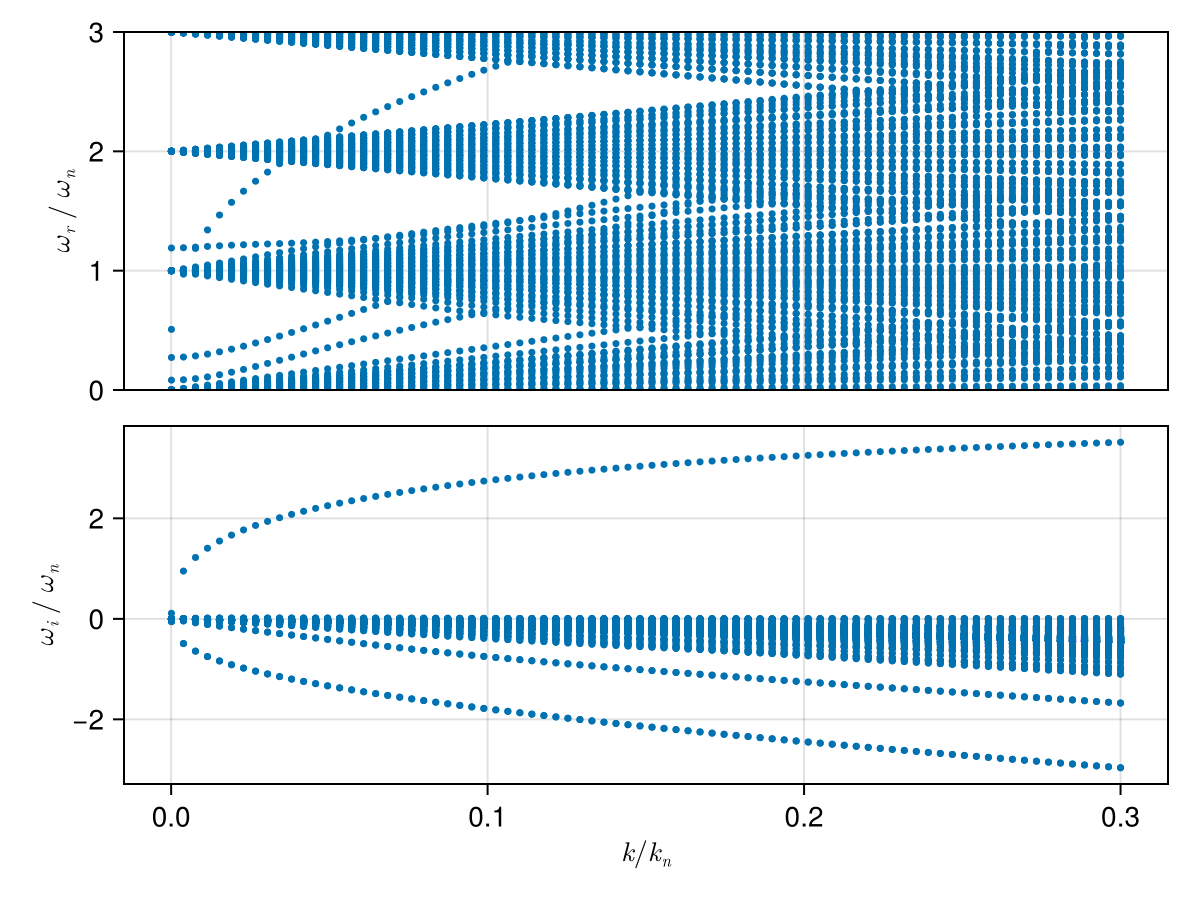

Example block output
