Ion Beam Instability (Gary et al. 1984)

This page reproduces the dispersion relations from the classical paper (Gary et al. [6]): Gary, S. P., Smith, C. W., Lee, M. A., Goldstein, M. L., & Forslund, D. W. (1984). Electromagnetic ion beam instabilities. Physics of Fluids, 27(7), 1852-1862.

Reference Distribution Function Parameters

These baseline parameters are used throughout the study unless otherwise specified.

Global Parameters:

  • Main ion beta ($\beta_m$): 1.00
  • Ratio of Alfvén speed to the speed of light ($v_A/c$): $1.0 \times 10^{-4}$

Species Parameters:

ComponentDensity Ratio ($n_j/n_e$)Mass Ratio ($m_j/m_e$)Temp Ratio ($T_j/T_m$)Anisotropy ($T_{\perp j}/T_{\parallel j}$)
Main ions (m)0.9918361.001.00
Beam ions (b)0.01183610.001.00
Electrons (e)1.0011.001.00

Summary of Electromagnetic Ion Beam Instabilities

Instability NamePropagationPolarizationResonance TypeDominant Conditions
Right-hand resonantParallelRight-hand circular (P = +1)Beam resonant ($|ζ_b| \approx 1$)Modest $v_0/v_A$, $T_b/T_m$, and $n_b/n_p$; resonant at large $k$
Right-hand nonresonantAntiparallelRight-hand circular (P = -1 for $\omega_r < 0$)Nonresonant ($|ζ_j| > 1$)Sufficiently large $n_b/n_p$ or $v_0/v_A$; $T_b > T_m$
Left-hand resonantParallelLeft-hand circularBeam resonant ($|ζ_b| < 1$)Large $T_b/T_m$ (diffuse distributions); lower threshold than right-hand nonresonant
Ion cyclotron anisotropyAntiparallelLeft-hand circularResonantDriven by temperature anisotropy ($T_{\perp}/T_{\parallel} > 1$, e.g., 4 to 9); modest $v_0/v_A$; persists at $v_0=0$
Right obliqueOblique to $\mathbf{B}$Right-hand elliptic (P > 0)Higher harmonic resonant ($m = 2, 3...$)High $v_0/v_A$ (e.g., $v_0 = 30 v_m$); free energy well above threshold of field-aligned mode
Left obliqueOblique to $\mathbf{B}$Left-hand elliptic (P < 0)Higher harmonic resonant ($m = 2, 3...$)High drift speed ($v_0 = 30 v_m$); faster growth than right oblique $m=2$

Simulating Specific Modes in PlasmaBO.jl

Based on the parameter sets defined in Gary et al. [6], here are complete PlasmaBO.jl configurations to demonstrate each instability mode.

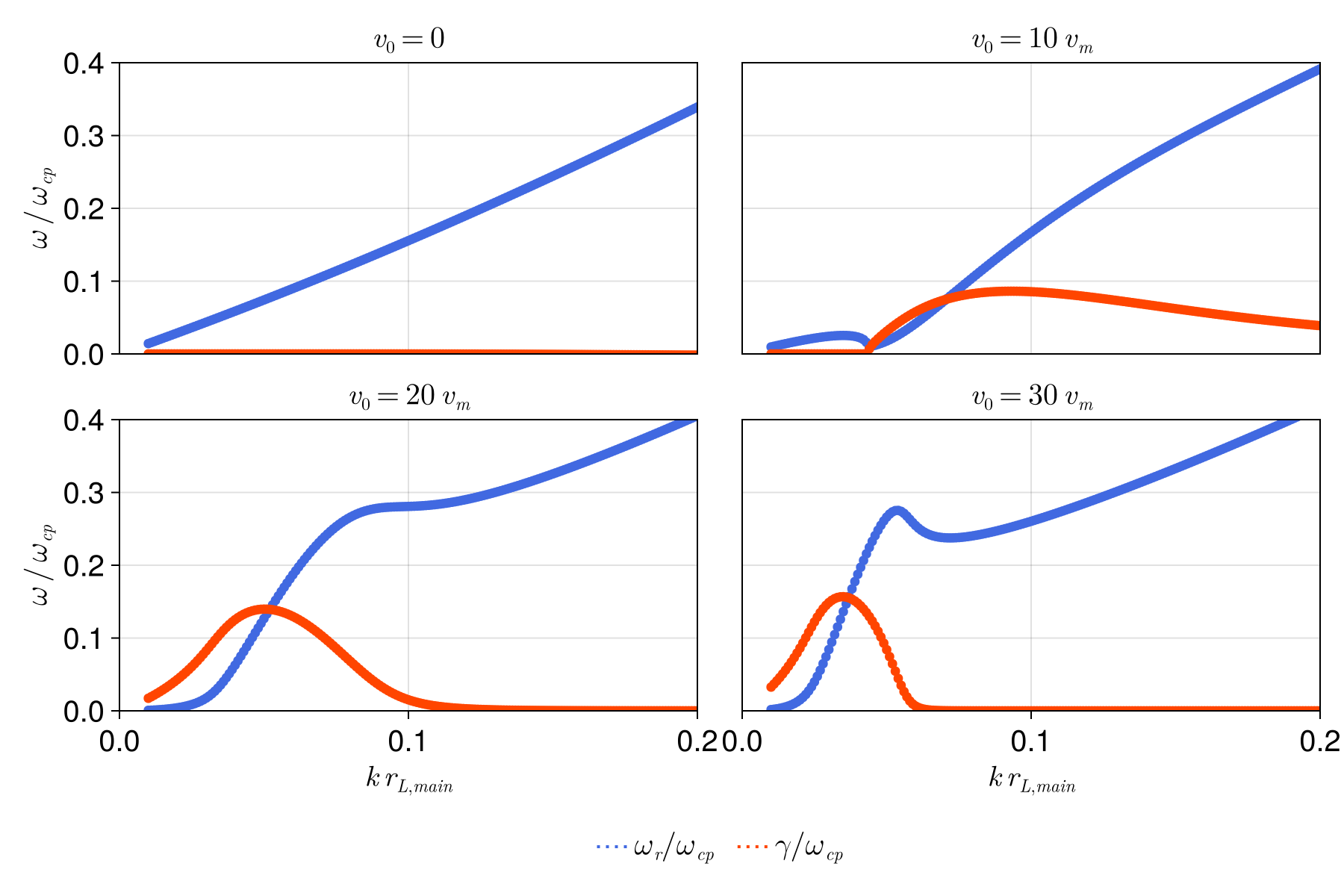

Right-Hand Resonant Ion Beam Instability

The following reproduces Figure 1, showing all four drift velocities in a 2×2 layout with $\omega_r/\omega_{cp}$ and $\gamma/\omega_{cp}$ plotted together on each panel. The wave number is normalized by the thermal proton gyroradius $r_L$ (i.e. $a_m$ in the original paper). Note that $\frac{r_L}{d_i} = \frac{v_{ti}}{v_A} = \sqrt{\beta/2}$.

using PlasmaBO
using PlasmaBO: c0, μ0, mp, q
using CairoMakie

vA_c = 1.0e-4
beta_m = 1.0
B0 = 1e-8 # 10 nT

vA = vA_c * c0
ne = B0^2 / (vA^2 * μ0 * mp)
ωcp = q * B0 / mp

nm = 0.99 * ne
nb = 0.01 * ne
Tm_eV = (beta_m * B0^2 / (2 * μ0) / nm) / q
vm = sqrt(Tm_eV * q / mp)  # main ion thermal speed
Tb_eV = 10.0 * Tm_eV
Te_eV = 1.0 * Tm_eV

θ = 0.0
k_norm = ωcp / vm
# Note that the step size of k needs to be small enough
# to accurately capture the dispersion relation.
k_ranges = (0.01:0.001:0.2) .* (ωcp / vm)

v0_vals   = [0.0, 10.0, 20.0, 30.0] .* vm
v0_labels = [L"v_0 = 0",
             L"v_0 = 10\,v_m",
             L"v_0 = 20\,v_m",
             L"v_0 = 30\,v_m"]

# v0=0: real seed targets the stable R-wave (Alfvén branch)
# v0>0: imaginary seed hunts the growing beam-resonant mode
initial_points = [
    (0.1 * ωcp / vm, 0.15 * ωcp),
    (0.1 * ωcp / vm, 0.08im * ωcp),
    (0.05 * ωcp / vm, 0.1im * ωcp),
    (0.04 * ωcp / vm, 0.15im * ωcp),
]

sols = map(v0_vals) do v0
    v0m = -nb * v0 / (nm + nb)
    v0b = v0m + v0

    main_ion = Maxwellian(:p, nm, Tm_eV; vdz = v0m / c0)
    beam_ion = Maxwellian(:p, nb, Tb_eV; vdz = v0b / c0)
    electron = Maxwellian(:e, ne, Te_eV)
    species = (main_ion, beam_ion, electron)
    solve(species, B0, k_ranges, θ; N = 3)
end

fig = Figure(size = (900, 600), fontsize = 20)

for (idx, (sol, label)) in enumerate(zip(sols, v0_labels))
    row = (idx - 1) ÷ 2 + 1
    col = (idx - 1) % 2 + 1

    ax = Axis(fig[row, col], title = label)

    col == 1 ? (ax.ylabel = L"$\omega\,/\,\omega_{cp}$") : hideydecorations!(ax, grid = false)
    row == 2 ? (ax.xlabel = L"$k\,r_{L,main}$") : hidexdecorations!(ax, grid = false)

    # Tracking from given seeding points
    k_branch, ω_branch = track(sol, initial_points[idx])
    scatterlines!(ax, k_branch ./ k_norm, real.(ω_branch) ./ ωcp;
        linewidth = 2, color = :royalblue)
    scatterlines!(ax, k_branch ./ k_norm, imag.(ω_branch) ./ ωcp;
        linewidth = 2, color = :orangered)

    xlims!(ax, 0, 0.2)
    ylims!(ax, 0, 0.4)
end

colgap!(fig.layout, 30)

Legend(fig[3, 1:2],
    [LineElement(color = :royalblue, linestyle = :dot, linewidth = 2),
     LineElement(color = :orangered, linestyle = :dot, linewidth = 2)],
    [L"$\omega_r / \omega_{cp}$", L"$\gamma / \omega_{cp}$"],
    orientation = :horizontal, framevisible = false)

fig
Example block output

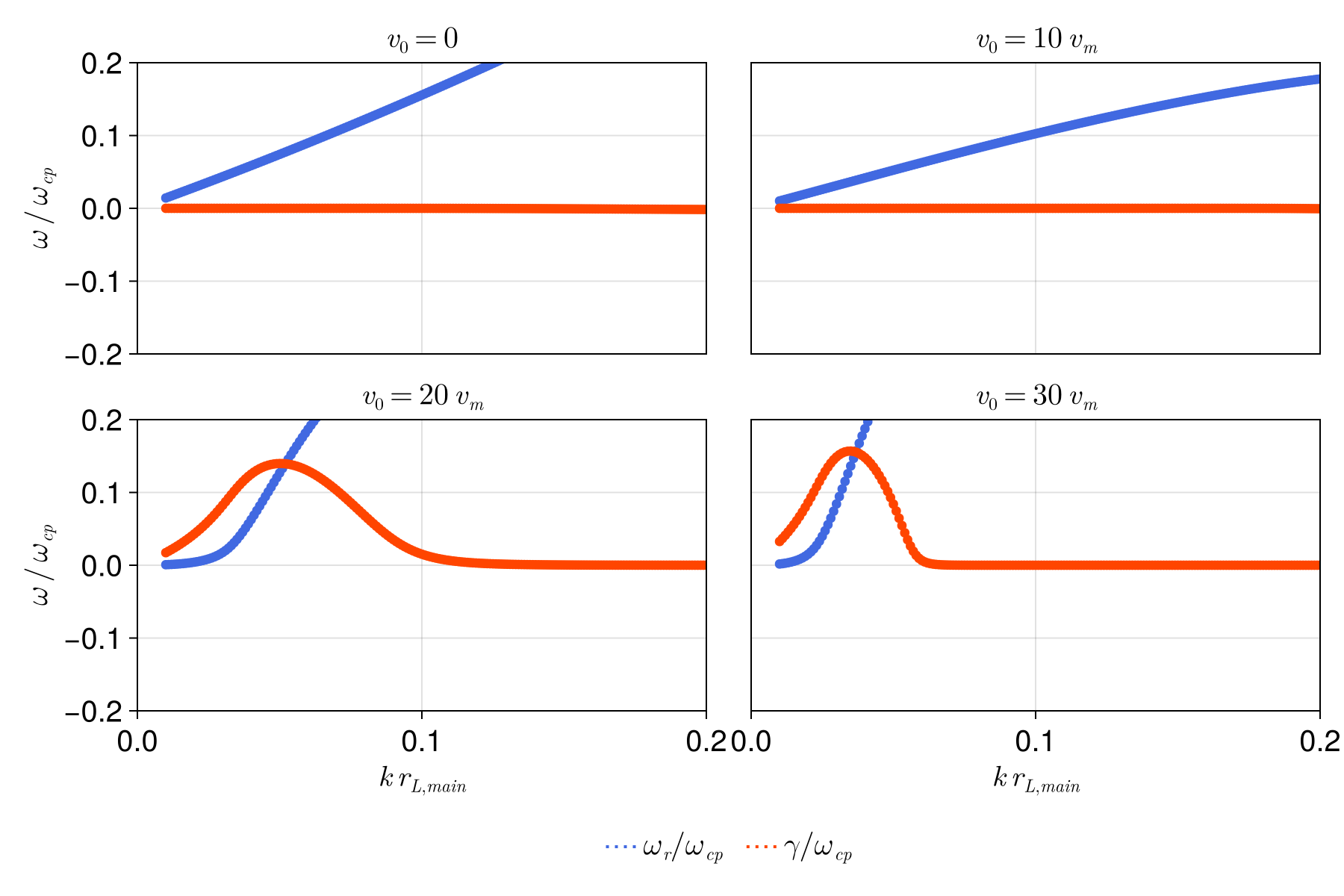

Right-hand Nonresonant Ion Beam Instability

Requires either a high drift velocity or a high beam density.

using PlasmaBO
using PlasmaBO: c0, μ0, mp, q
using CairoMakie

vA_c = 1.0e-4
beta_m = 1.0
B0 = 1e-8 # 10 nT

vA = vA_c * c0
ne = B0^2 / (vA^2 * μ0 * mp)
ωcp = q * B0 / mp

nm = 0.99 * ne
nb = 0.01 * ne
Tm_eV = (beta_m * B0^2 / (2 * μ0) / nm) / q
vm = sqrt(Tm_eV * q / mp)  # main ion thermal speed
Tb_eV = 10.0 * Tm_eV
Te_eV = 1.0 * Tm_eV

θ = 0.0
k_norm = ωcp / vm
k_ranges = (0.01:0.001:0.2) .* k_norm

v0_vals   = [0.0, 10.0, 20.0, 30.0] .* vm
v0_labels = [L"v_0 = 0",
             L"v_0 = 10\,v_m",
             L"v_0 = 20\,v_m",
             L"v_0 = 30\,v_m"]

# The nonresonant mode is backward-propagating (ω_r < 0) and grows at low k.
# Seed with imaginary ω to target the growing nonresonant branch.
# For v0=0 there is no beam-driven nonresonant mode; target the stable Alfvén branch.
initial_points = [
    (0.1 * k_norm,  0.15 * ωcp),     # v0=0: stable Alfvén branch (real seed)
    (0.1 * k_norm, 0.1 * ωcp + 0.001im * ωcp),  # v0=10 vm: nonresonant mode (low k)
    (0.02 * k_norm, 0.0 + 0.1im * ωcp),   # v0=20 vm: stronger nonresonant growth
    (0.02 * k_norm, 0.0 + 0.25im * ωcp), # v0=30 vm: peak nonresonant instability
]

sols = map(v0_vals) do v0
    v0m = -nb * v0 / (nm + nb)
    v0b = v0m + v0

    main_ion = Maxwellian(:p, nm, Tm_eV; vdz = v0m / c0)
    beam_ion = Maxwellian(:p, nb, Tb_eV; vdz = v0b / c0)
    electron = Maxwellian(:e, ne, Te_eV)
    species = (main_ion, beam_ion, electron)
    solve(species, B0, k_ranges, θ; N = 3)
end

fig = Figure(size = (900, 600), fontsize = 20)

for (idx, (sol, label)) in enumerate(zip(sols, v0_labels))
    row = (idx - 1) ÷ 2 + 1
    col = (idx - 1) % 2 + 1

    ax = Axis(fig[row, col], title = label)

    col == 1 ? (ax.ylabel = L"$\omega\,/\,\omega_{cp}$") : hideydecorations!(ax, grid = false)
    row == 2 ? (ax.xlabel = L"$k\,r_{L,main}$") : hidexdecorations!(ax, grid = false)

    k_branch, ω_branch = track(sol, initial_points[idx])
    scatterlines!(ax, k_branch ./ k_norm, real.(ω_branch) ./ ωcp;
        linewidth = 2, color = :royalblue)
    scatterlines!(ax, k_branch ./ k_norm, imag.(ω_branch) ./ ωcp;
        linewidth = 2, color = :orangered)

    xlims!(ax, 0, 0.2)
    ylims!(ax, -0.2, 0.2)
end

colgap!(fig.layout, 30)

Legend(fig[3, 1:2],
    [LineElement(color = :royalblue, linestyle = :dot, linewidth = 2),
     LineElement(color = :orangered, linestyle = :dot, linewidth = 2)],
    [L"$\omega_r / \omega_{cp}$", L"$\gamma / \omega_{cp}$"],
    orientation = :horizontal, framevisible = false)

fig
Example block output

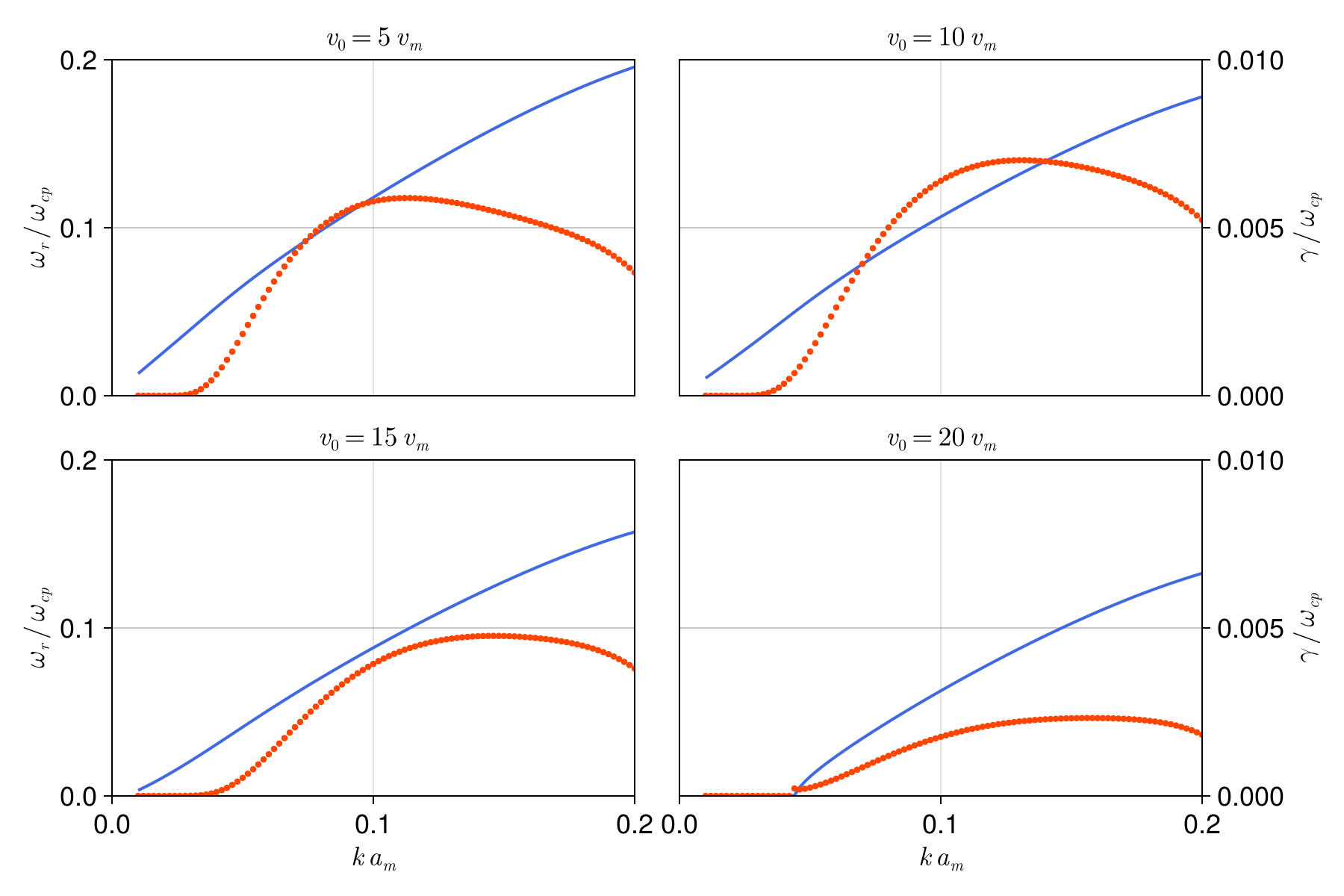

3. Left-hand Resonant Ion Beam Instability

This instability operates efficiently for hot, diffuse beam distributions where $T_b = 100 T_m$. The setup generates the 4-panel layout corresponding to Figure 7. A secondary axis is used because the growth rate $\gamma$ is scaled an order of magnitude smaller than the real frequency.

using PlasmaBO
using PlasmaBO: c0, μ0, mp, q
using CairoMakie

vA_c = 1.0e-4
beta_m = 1.0
B0 = 1e-8

vA = vA_c * c0
ne = B0^2 / (vA^2 * μ0 * mp)
ωcp = q * B0 / mp

nm = 0.99 * ne
nb = 0.01 * ne
Tm_eV = (beta_m * B0^2 / (2 * μ0) / nm) / q
vm = sqrt(Tm_eV * q / mp)
Tb_eV = 100.0 * Tm_eV  # Diffuse beam distribution
Te_eV = 1.0 * Tm_eV

θ = 0.0
k_norm = ωcp / vm
k_ranges = (0.01:0.002:0.25) .* k_norm

v0_vals   = [5.0, 10.0, 15.0, 20.0] .* vm
v0_labels = [L"v_0 = 5\,v_m", L"v_0 = 10\,v_m", L"v_0 = 15\,v_m", L"v_0 = 20\,v_m"]

initial_points = [
    (0.1 * k_norm, 0.1 * ωcp + 0.001im * ωcp),
    (0.1 * k_norm, 0.1 * ωcp + 0.005im * ωcp),
    (0.1 * k_norm, 0.1 * ωcp + 0.005im * ωcp),
    (0.1 * k_norm, 0.1 * ωcp + 0.005im * ωcp),
]

sols = map(v0_vals) do v0
    v0m = -nb * v0 / (nm + nb)
    v0b = v0m + v0

    main_ion = Maxwellian(:p, nm, Tm_eV; vdz = v0m / c0)
    beam_ion = Maxwellian(:p, nb, Tb_eV; vdz = v0b / c0)
    electron = Maxwellian(:e, ne, Te_eV)
    species = (main_ion, beam_ion, electron)
    solve(species, B0, k_ranges, θ; N = 4)
end

fig = Figure(size = (900, 600), fontsize = 18)

for (idx, (sol, label)) in enumerate(zip(sols, v0_labels))
    row = (idx - 1) ÷ 2 + 1
    col = (idx - 1) % 2 + 1

    ax1 = Axis(fig[row, col], title = label)
    ax2 = Axis(fig[row, col], yaxisposition = :right)
    hidespines!(ax2)
    hidexdecorations!(ax2)

    col == 1 ? (ax1.ylabel = L"$\omega_r\,/\,\omega_{cp}$") : hideydecorations!(ax1, grid = false)
    col == 2 ? (ax2.ylabel = L"$\gamma\,/\,\omega_{cp}$") : hideydecorations!(ax2, grid = false)
    row == 2 ? (ax1.xlabel = L"$k\,a_{m}$") : hidexdecorations!(ax1, grid = false)

    k_branch, ω_branch = track(sol, initial_points[idx])

    lines!(ax1, k_branch ./ k_norm, real.(ω_branch) ./ ωcp; linewidth = 2, color = :royalblue)
    scatter!(ax2, k_branch ./ k_norm, imag.(ω_branch) ./ ωcp; markersize = 6, color = :orangered)

    xlims!(ax1, 0, 0.2)
    xlims!(ax2, 0, 0.2)
    ylims!(ax1, 0, 0.2)
    ylims!(ax2, 0, 0.01) # Mode 3 growth rates are relatively small
end

colgap!(fig.layout, 30)
fig
Example block output

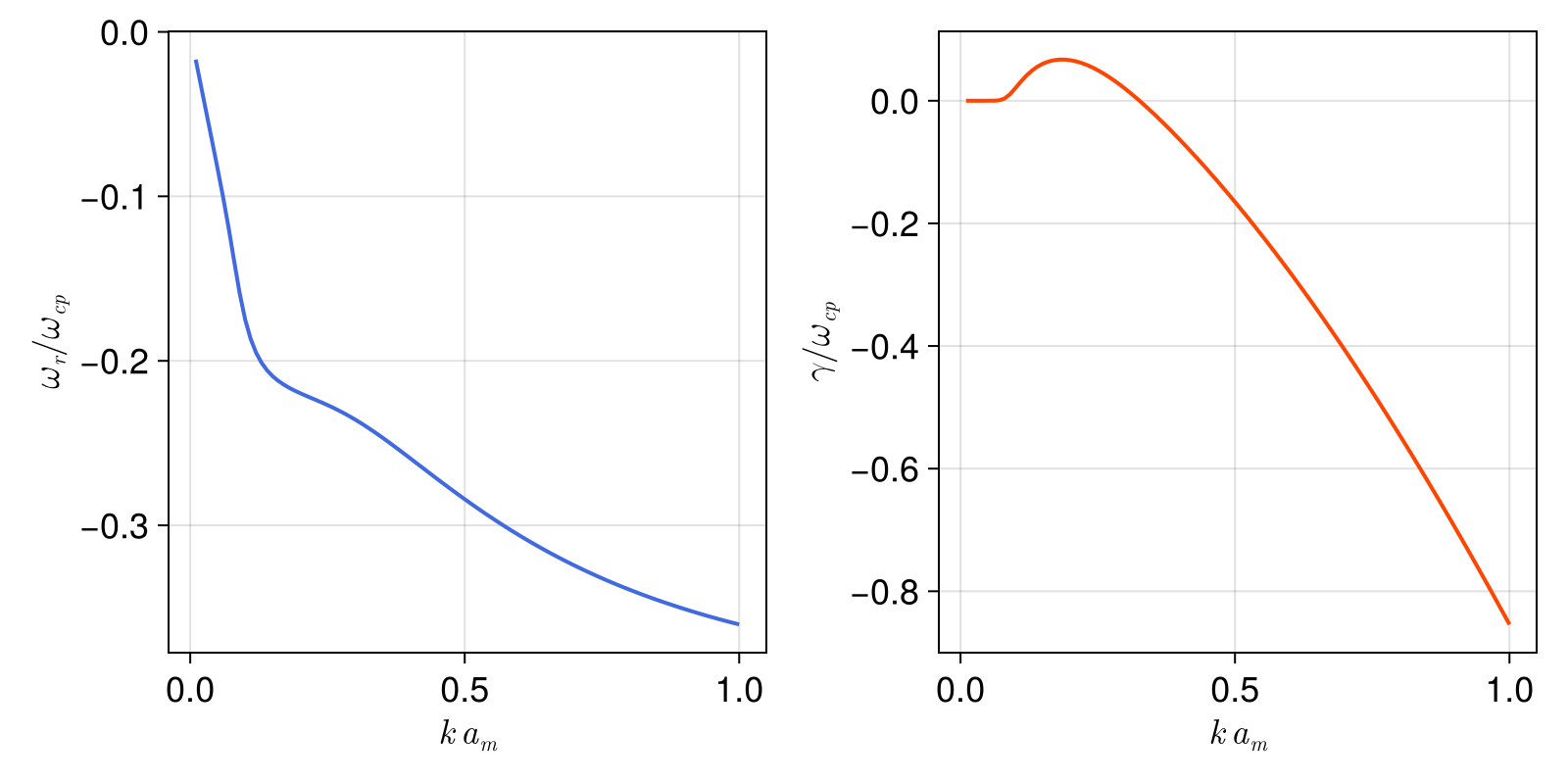

4. Ion Cyclotron Anisotropy Instability

Driven by temperature anisotropy rather than drift velocity. This mode persists even when the bulk drift velocity is zero.

using PlasmaBO
using PlasmaBO: c0, μ0, mp, q
using CairoMakie

vA_c = 1.0e-4
beta_m = 1.0
B0 = 1e-8
vA = vA_c * c0
ne = B0^2 / (vA^2 * μ0 * mp)
ωcp = q * B0 / mp

nm = 0.99 * ne
nb = 0.01 * ne
Tm_eV = (beta_m * B0^2 / (2 * μ0) / nm) / q
vm = sqrt(Tm_eV * q / mp)
Tb_eV = 10.0 * Tm_eV
Te_eV = 1.0 * Tm_eV

θ = 0.0

# Driving the instability via temperature anisotropy
Tparallel_b = 1.0 * Tb_eV
Tperp_b = 10.0 * Tb_eV

main_ion = Maxwellian(:p, nm, Tm_eV)
beam_ion = Maxwellian(:p, nb, Tparallel_b, Tperp_b)
electron = Maxwellian(:e, ne, Te_eV)
species = (main_ion, beam_ion, electron)

k_norm = ωcp / vm
k_ranges = (0.01:0.01:1.0) .* k_norm
sol = solve(species, B0, k_ranges, θ; N = 6)

fig = Figure(size = (800, 400), fontsize = 18)
ax1 = Axis(fig[1, 1], ylabel = L"$\omega_r / \omega_{cp}$", xlabel = L"$k\,a_{m}$")
ax2 = Axis(fig[1, 2], ylabel = L"$\gamma / \omega_{cp}$", xlabel = L"$k\,a_{m}$")

k_branch, ω_branch = track(sol, (0.2 * k_norm, 0.1im * ωcp))

lines!(ax1, k_branch ./ k_norm, real.(ω_branch) ./ ωcp, linewidth = 2, color = :royalblue)
lines!(ax2, k_branch ./ k_norm, imag.(ω_branch) ./ ωcp, linewidth = 2, color = :orangered)

fig
Example block output

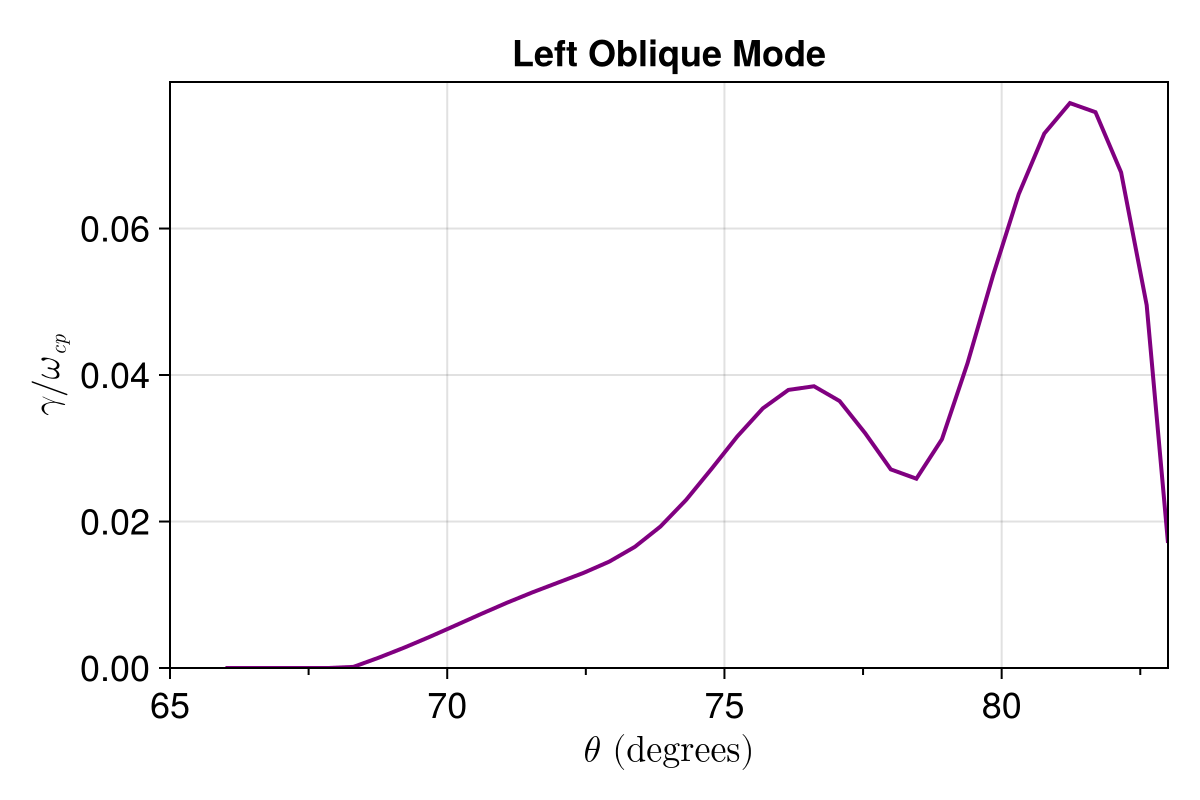

5. Oblique Instabilities (Right & Left)

When examining oblique propagation at a large drift speed ($v_0 = 30 v_m$), higher-order cyclotron resonances emerge. This calculates the growth rate against the propagation angle $\theta$ for the Left Oblique mode at $k a_m = 0.44$, recreating Figure 10 which highlights the $m=2$ peak.

using PlasmaBO
using PlasmaBO: c0, μ0, mp, q
using CairoMakie

vA_c = 1.0e-4
beta_m = 1.0
B0 = 1e-8

vA = vA_c * c0
ne = B0^2 / (vA^2 * μ0 * mp)
ωcp = q * B0 / mp

nm = 0.99 * ne
nb = 0.01 * ne
Tm_eV = (beta_m * B0^2 / (2 * μ0) / nm) / q
vm = sqrt(Tm_eV * q / mp)
Tb_eV = 10.0 * Tm_eV
Te_eV = 1.0 * Tm_eV

v0 = 30.0 * vm
v0m = -nb * v0 / (nm + nb)
v0b = v0m + v0

main_ion = Maxwellian(:p, nm, Tm_eV; vdz = v0m / c0)
beam_ion = Maxwellian(:p, nb, Tb_eV; vdz = v0b / c0)
electron = Maxwellian(:e, ne, Te_eV)
species = (main_ion, beam_ion, electron)

k_target = 0.44 * ωcp / vm
θ_vals = range(66, 84, length = 40) .* (π / 180)

γ_vals = map(θ_vals) do θ
    sol = solve(species, B0, [k_target], θ; N = 6)
    # Extract the mode with the maximum growth rate at this configuration
    maximum(imag.(sol.ωs[1]))
end

fig = Figure(size = (600, 400), fontsize = 18)
ax = Axis(fig[1, 1], xlabel = L"$\theta$ (degrees)", ylabel = L"$\gamma / \omega_{cp}$",
          title = "Left Oblique Mode", xminorticksvisible = true)

lines!(ax, θ_vals .* (180 / π), γ_vals ./ ωcp, linewidth = 2, color = :purple)

xlims!(ax, 65, 83)
ylims!(ax, 0.0, 0.08)
fig
Example block output
