Case: Cold plasma (kinetic vs fluid)

This page demonstrates a typical cold plasma configuration (electron–proton plasma) and compares the eigenmodes computed by the kinetic solver (solve) and the multi-fluid solver (solve with BOFluid).

The input parameters correspond to the following species table:

We scan k at fixed propagation angle θ = 60°.

using PlasmaBO
using PlasmaBO: q, me, mp, c0

B0 = 100e-9 # [Tesla]
θ = deg2rad(60)

n = 8.7e6
T = 2.857e-3

ion = Maxwellian(:p, n, T)
electron = Maxwellian(:e, n, T)
species = (ion, electron)
# For more control over the fluid model, we can use `FluidSpecies`
# electron_f = FluidSpecies(:e, n, T; gamma_z = 1.0, gamma_p = 1.0)

wci = abs(B0 * q / mp)
wpi = plasma_frequency(q, n, mp)
kn = wpi / c0

1.2953169827637899e-5

Dispersion Curve Scan

julia> kn_scan = 0.01:2.0:100.0;
julia> ks = kn_scan .* kn;
julia> kinetic = solve(species, B0, ks, θ);
Solving dispersion (k, θ)...  40%|█████████▎             |  ETA: 0:00:02
Solving dispersion (k, θ)... 100%|███████████████████████| Time: 0:00:02
julia> fluid_ωs = solve(species, B0, ks, θ, BOFluid);

using CairoMakie

let
    fig = Figure(size = (900, 360))
    ax1 = Axis(fig[1, 1], xlabel = "k [k_n]", ylabel = "Re(ω)/ω_ci")
    ax2 = Axis(fig[1, 2], xlabel = "k [k_n]", ylabel = "Im(ω)/ω_ci")

    for (k_norm, ωs_k, ωs_f) in zip(kn_scan, kinetic.ωs, fluid_ωs.ωs)
        xk = fill(k_norm, length(ωs_k))
        xf = fill(k_norm, length(ωs_f))

        scatter!(ax1, xk, real.(ωs_k) ./ wci; color=:transparent, strokecolor = (:blue, 0.35), strokewidth=2, marker = :circle)
        scatter!(ax1, xf .+ 0.05, real.(ωs_f) ./ wci; color=:red, marker = :cross)

        scatter!(ax2, xk, imag.(ωs_k) ./ wci; color=:transparent, strokecolor = (:blue, 0.35), strokewidth=2, marker = :circle)
        scatter!(ax2, xf .+ 0.05, imag.(ωs_f) ./ wci; color=:red, marker = :cross)
    end
    fig
end

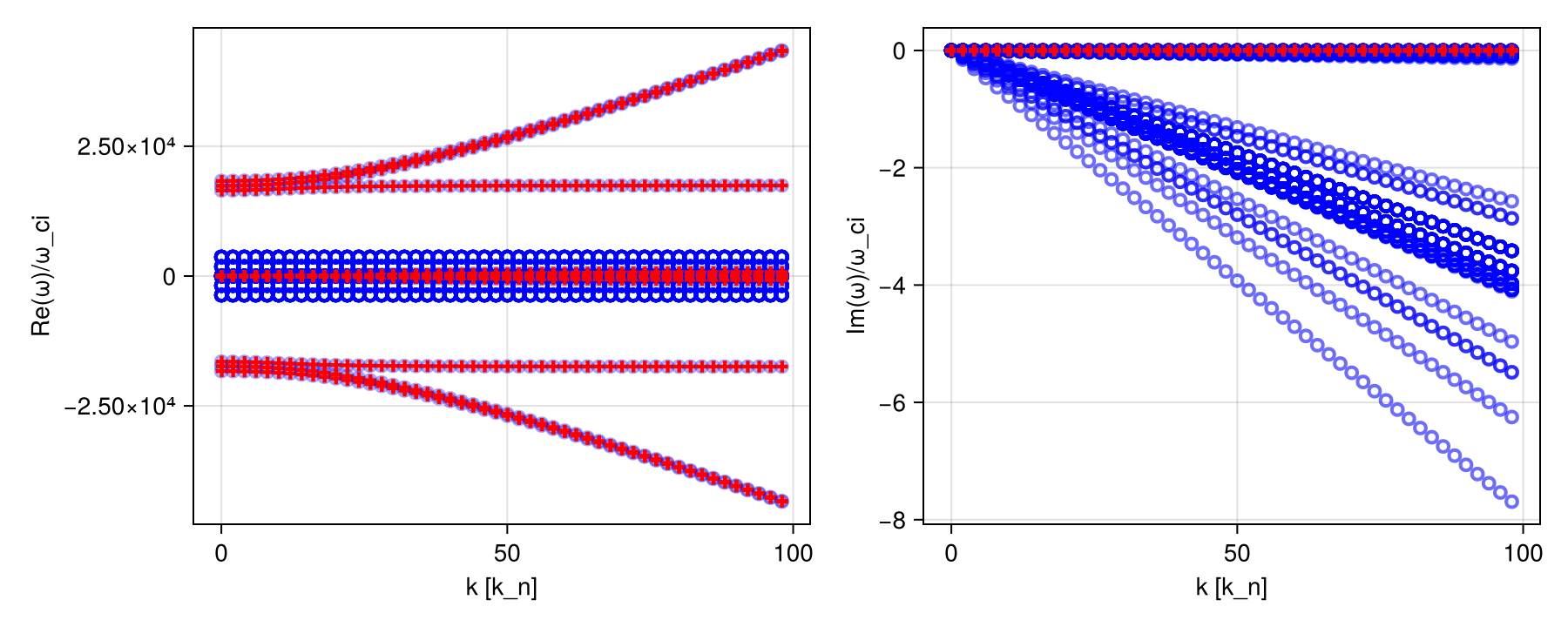

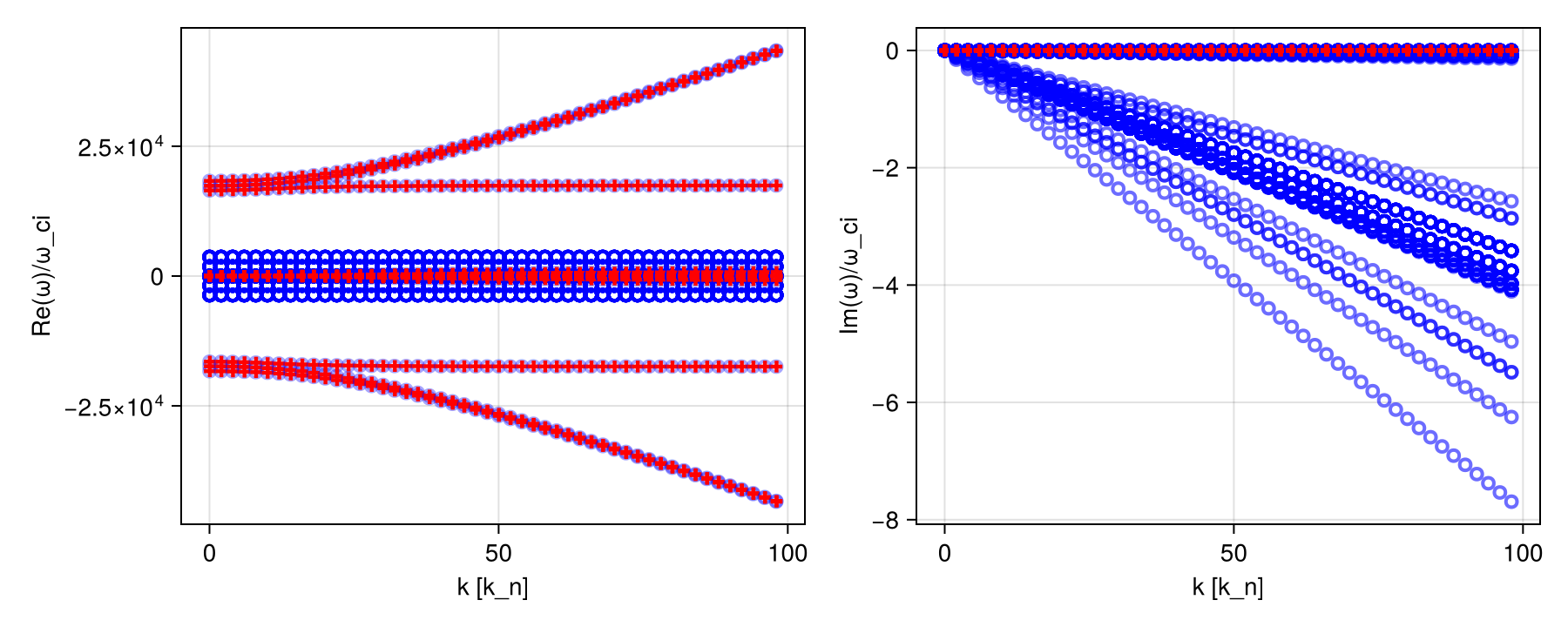

Red crosses: Fluid solver results.

Blue circles: Kinetic solver results.

There is a slight difference at large k for the ion cyclotron wave, which is damped due to kinetic effect.
