PlanetaryMagneticFields.jl

A Julia package for planetary magnetic field modeling.

Overview

PlanetaryMagneticFields.jl provides a unified framework for working with magnetic field models of planets in our solar system. It implements spherical harmonic expansions with Schmidt semi-normalization, following standards used in geomagnetism and planetary science.

Features

• Multi-planetary support: Mercury, Earth, Mars, Jupiter, Saturn, Uranus, Neptune, and Ganymede
• Multiple models: 80+ models available across all planets
• Flexible evaluation: Support for both spherical and Cartesian coordinates
• Visualization: Plot magnetic field maps using GeoMakie (Mollweide, Hammer projections)

Installation

using Pkg
Pkg.add("PlanetaryMagneticFields")

Quick Start

using PlanetaryMagneticFields

# Load a Jupiter magnetic field model by unique name
model = load_model(:JRM33; max_degree=13)

# Or use the convenience accessor
model = JRM33(max_degree=13)

# Evaluate the field at a position (in planetary radii)
# Position: 1.5 RJ, 45° colatitude, 0° longitude
r, θ, φ = 1.5, π/4, 0.0
B = model(r, θ, φ)  # Returns [B_r, B_θ, B_φ] in nT

# Use Cartesian coordinates
B = model(1.0, 0.0, 0.5; in=:cartesian)  # Returns [B_x, B_y, B_z] in nT

# Keyword arguments take precedence over constructor arguments
B_sph = model(1.0, 0.0, 0.5; in=:cartesian, out=:spherical)  # Returns [B_r, B_θ, B_φ]

3-element StaticArraysCore.SVector{3, Float64} with indices SOneTo(3):
 102024.00685710141
 201005.43418457863
 -24988.588089244273

Coordinate Systems

PlanetaryMagneticFields.jl currently supports two coordinate systems:

Spherical Coordinates

• r: Radial distance from planet center (in planetary radii or km)
• θ: Colatitude in radians [0, π] (0 at north pole, π at south pole)
• φ: East longitude in radians [0, 2π]

Cartesian Coordinates

• x, y, z: Right-handed system with z-axis toward north pole
• x-axis points to (θ=π/2, φ=0)
• y-axis points to (θ=π/2, φ=π/2)

Visualization

PlanetaryMagneticFields.jl provides visualization capabilities through GeoMakie. To use plotting functions, you need to load CairoMakie (or GLMakie) and GeoMakie:

using CairoMakie, GeoMakie
using PlanetaryMagneticFields

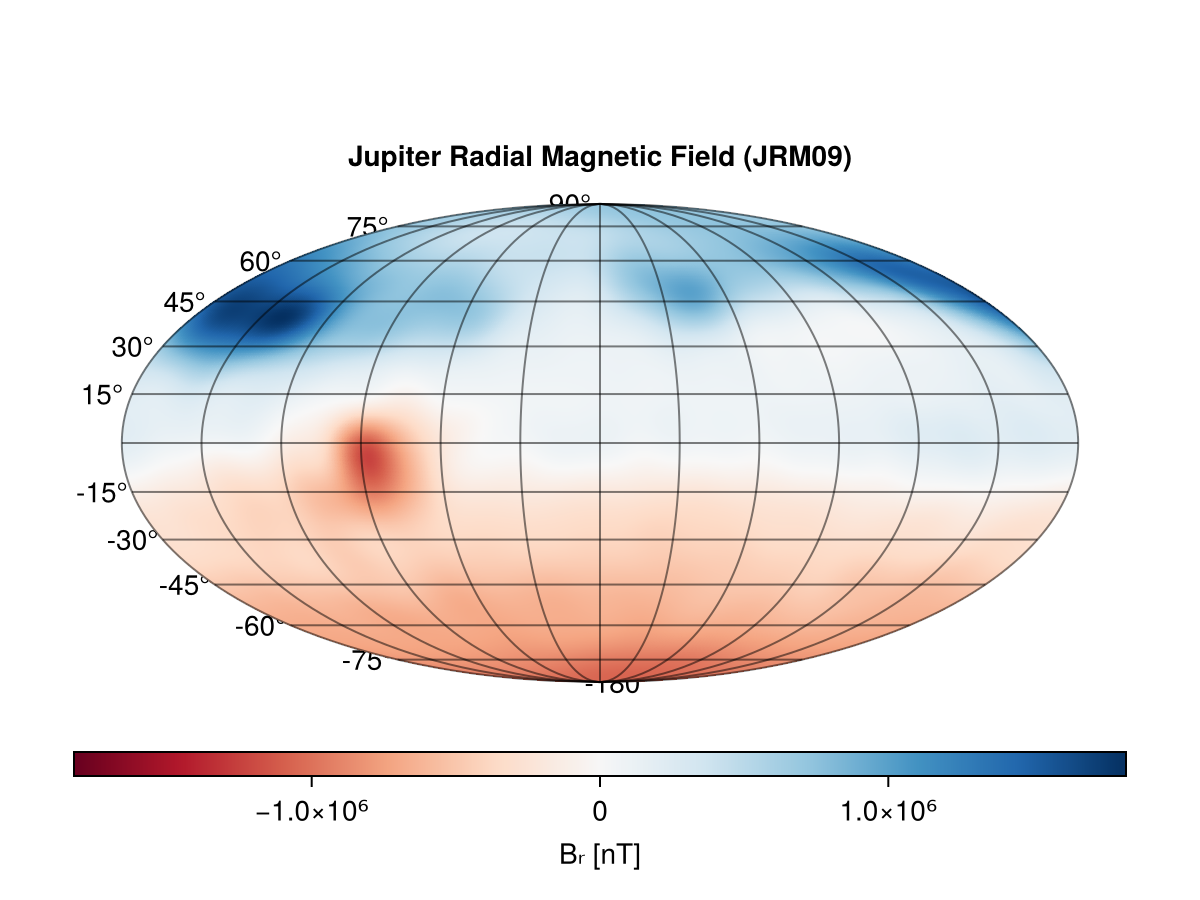

Here is an example of how to plot a magnetic field map for a single planet:

model = JRM09() # Load Jupiter's JRM09 model

# Create a field map with Mollweide projection
plot_fieldmap(model;
    r=1.0,
    axis=(; title="Jupiter Radial Magnetic Field (JRM09)"),
    dest="+proj=moll"
)

See visualization examples for more details.

Available Models

List all available models:

available_models()

84-element Vector{String}:
 "gsfc13ev"
 "gsfc15ev"
 "gsfc15evs"
 "isaac"
 "jpl15ev"
 "jpl15evs"
 "jrm09"
 "jrm33"
 "o4"
 "o6"
 ⋮
 "cassini3"
 "cassini5"
 "p1184"
 "p11as"
 "soi"
 "spv"
 "v1"
 "v2"
 "z3"

Loading Models for Any Planet

# Load a model by planet and model name
earth_model = load_model(:earth, "igrf2020")
saturn_model = load_model(:saturn, "cassini11")
neptune_model = load_model(:neptune, "gsfco8")

# Evaluate at the surface
earth_model(1.0, π/4, 0.0)

3-element StaticArraysCore.SVector{3, Float64} with indices SOneTo(3):
 -40892.20329623209
 -22782.62882034594
    206.39416714386755

Mercury

available_models(:Mercury)

14-element Vector{String}:
 "anderson2010d"
 "anderson2010dsha"
 "anderson2010dts04"
 "anderson2010q"
 "anderson2010qsha"
 "anderson2010qts04"
 "anderson2010r"
 "anderson2012"
 "ness1975"
 "thebault2018m1"
 "thebault2018m2"
 "thebault2018m3"
 "uno2009"
 "uno2009svd"

Earth

available_models(:Earth)

26-element Vector{String}:
 "igrf1900"
 "igrf1905"
 "igrf1910"
 "igrf1915"
 "igrf1920"
 "igrf1925"
 "igrf1930"
 "igrf1935"
 "igrf1940"
 "igrf1945"
 ⋮
 "igrf1985"
 "igrf1990"
 "igrf1995"
 "igrf2000"
 "igrf2005"
 "igrf2010"
 "igrf2015"
 "igrf2020"
 "igrf2025"

The IGRF (International Geomagnetic Reference Field) models span from 1900 to 2025.

Mars

available_models(:Mars)

4-element Vector{String}:
 "cain2003"
 "gao2021"
 "langlais2019"
 "mh2014"

Mars has crustal magnetic fields (no global dynamo).

Jupiter

available_models(:Jupiter)

17-element Vector{String}:
 "gsfc13ev"
 "gsfc15ev"
 "gsfc15evs"
 "isaac"
 "jpl15ev"
 "jpl15evs"
 "jrm09"
 "jrm33"
 "o4"
 "o6"
 "p11a"
 "sha"
 "u17ev"
 "v117ev"
 "vip4"
 "vipal"
 "vit4"

julia> model_info(:jrm33)Dict{String, Any} with 9 entries:
  "name"               => "JRM33"
  "references"         => ["Connerney et al. (2022), Journal of Geophysical Res…
  "year"               => 2022
  "order"              => 30
  "doi"                => "10.1029/2021JE007055"
  "notes"              => ["Based on Juno's first 33 orbits", "Latest model. Co…
  "degree"             => 30
  "description"        => "Jupiter Reference Model through Perijove 33"
  "recommended_degree" => 13
julia> model_info("jrm09")Dict{String, Any} with 9 entries:
  "name"          => "JRM09"
  "year"          => 2018
  "order"         => 10
  "reference"     => "Connerney et al. (2018), Geophysical Research Letters"
  "doi"           => "10.1002/2018GL077312"
  "degree"        => 10
  "mission_phase" => "First 9 Juno orbits"
  "notes"         => "Well-validated standard model for Jupiter's internal fiel…
  "description"   => "Juno Reference Model through Perijove 9"

Saturn

available_models(:Saturn)

11-element Vector{String}:
 "burton2009"
 "cassini11"
 "cassini3"
 "cassini5"
 "p1184"
 "p11as"
 "soi"
 "spv"
 "v1"
 "v2"
 "z3"

Uranus

available_models(:uranus)

4-element Vector{String}:
 "ah5"
 "gsfcq3"
 "gsfcq3full"
 "umoh"

Neptune

available_models(:neptune)

3-element Vector{String}:
 "gsfco8"
 "gsfco8full"
 "nmoh"

Ganymede

available_models(:ganymede)

5-element Vector{String}:
 "kivelson2002a"
 "kivelson2002b"
 "kivelson2002c"
 "weber2022dip"
 "weber2022quad"

Physical Parameters

The package uses the following mean radii for unit conversions:

Mathematical Background

The magnetic scalar potential is expanded in spherical harmonics:

\[V(r,θ,φ) = a \sum_{n=1}^{N} \sum_{m=0}^{n} \left(\frac{a}{r}\right)^{n+1} [g_n^m \cos(mφ) + h_n^m \sin(mφ)] P_n^m(\cos θ)\]

where:

• a is the planetary radius
• g_n^m, h_n^m are the Gauss coefficients (Schmidt semi-normalized)
• P_n^m are the associated Legendre polynomials (Schmidt semi-normalized)
• (r,θ,φ) are spherical coordinates

The magnetic field B = -∇V is computed from derivatives of the potential.

References

1. Connerney, J. E. P., et al. (2018). A new model of Jupiter's magnetic field from Juno's first nine orbits. Geophysical Research Letters, 45(6), 2590-2596. doi:10.1002/2018GL077312

2. Connerney, J. E. P., et al. (2022). A new model of Jupiter's magnetic field at the completion of Juno's Prime Mission. Journal of Geophysical Research: Planets, 127(2), e2021JE007055. doi:10.1029/2021JE007055

3. Winch, D. E., et al. (2005). Geomagnetism and Schmidt quasi-normalization. Geophysical Journal International, 160(2), 487-504.

Comparison

using PythonCall
using PlanetaryMagneticFields
using Chairmarks
@py import JupiterMag as jm

r, θ, φ = 1.5, π/4, 0.0
jm.Internal.Config(Model="jrm33", CartesianIn=false, CartesianOut=false)

Python: {'Model': 'jrm33', 'CartesianIn': np.False_, 'CartesianOut': np.False_, 'Degree': np.int32(13)}

julia> Br, Bt, Bp = jm.Internal.Field(r, θ, φ);
julia> B_py = pyconvert(Vector{Float64}, [Br[0], Bt[0], Bp[0]])3-element Vector{Float64}:
 118254.5236651993
  92694.83054050733
 -11952.585361387928
julia> model = JRM33(max_degree=13)SphericalHarmonicModel(name=jrm33, obj=PlanetaryMagneticFields.Planet(:jupiter, 71492.0), degree=13, order=13)
julia> B = model(r, θ, φ)3-element StaticArraysCore.SVector{3, Float64} with indices SOneTo(3):
 118254.5236651993
  92694.83054050733
 -11952.585361387926
julia> @assert B_py ≈ B
julia> @b $model($r, $θ, $φ), jm.Internal.Field($r, $θ, $φ)(1.412 μs, 29.115 μs (29 allocs: 624 bytes))

API Reference

• PlanetaryMagneticFields.GaussCoefficients
• PlanetaryMagneticFields.SphericalHarmonicModel
• PlanetaryMagneticFields.TimeVaryingGaussCoefficients
• PlanetaryMagneticFields.available_models
• PlanetaryMagneticFields.fieldmap
• PlanetaryMagneticFields.load_coefficients
• PlanetaryMagneticFields.load_model
• PlanetaryMagneticFields.model_info
• PlanetaryMagneticFields.plot_fieldmap
• PlanetaryMagneticFields.plot_fieldmap!
• PlanetaryMagneticFields.plot_models

GaussCoefficients

SphericalHarmonicModel{C} <: InternalFieldModel

TimeVaryingGaussCoefficients

available_models([body])

available_models()
available_models(:jupiter)

fieldmap(model, r, nlat, nlon; idx = identity)
fieldmap(model, r = 1.0; nlat = 180, nlon = 360, kw...)

model = load_model(:jupiter, "jrm09")
field_map = fieldmap(model; r=1.0)
# Access data: field_map[lon=0.0, lat=45.0]
# Get axes: axiskeys(field_map, 1) for longitudes, axiskeys(field_map, 2) for latitudes

load_coefficients(filepath; use_cache=false)::GaussCoefficients

load_coefficients("data/jupiter/jrm09.dat")

load_model(model; kwargs...)
load_model(planet, model; kwargs...)

# Load by unique model name
model = load_model(:JRM33; max_degree=13)
B = model(1.5, π/4, 0.0)  # Returns [B_r, B_θ, B_φ] in nT

# Load by planet and model name
model = load_model(:jupiter, "jrm09")
B = model(1.5, π/4, 0.0)

# With custom coordinate systems
model = load_model(:JRM33; max_degree=13, in=:cartesian, out=:cartesian)
B = model(1.0, 0.0, 0.5)  # Returns [B_x, B_y, B_z] in nT

# Override output coordinates at call time
B_sph = model(1.0, 0.0, 0.5; out=:spherical)  # Returns [B_r, B_θ, B_φ]

model_info(model)

info = model_info("jrm09")
println(info["description"])

plot_fieldmap(model; r=1.0, dest="+proj=moll", kwargs...)

using CairoMakie, GeoMakie
using PlanetaryMagneticFields

model = load_model(:jupiter, "jrm09")
plot_fieldmap(model; r=1.0, title="Jupiter JRM09")

plot_fieldmap!(ax, model; r=1.0, nlat=180, nlon=360, kwargs...)

using CairoMakie, GeoMakie
using PlanetaryMagneticFields

fig = Figure()
ax = GeoAxis(fig[1,1]; dest="+proj=moll")
model = load_model(:jupiter, "jrm09")
sf = plot_fieldmap!(ax, model; r=1.0)
Colorbar(fig[1,2], sf; label="Br [nT]")
fig

plot_models(; r=1.0, models=nothing, projection="+proj=moll", kwargs...)
