Field Line Tracing

GeoCotrans.FieldLineTracingModule

GeoCotrans.jl provides functionality to trace magnetic field lines.

This feature is provided via a package extension and requires an ODE solver package to be loaded in the active environment. For example, load OrdinaryDiffEqTsit5 (or another SciML ODE solver) before calling trace.

API

source

Basic Usage

using GeoCotrans, OrdinaryDiffEqTsit5, Dates

# Define time for field evaluation
t = DateTime(2020, 1, 1)

# Trace a field line starting from [3, 0, 0] Earth radii (GEO coordinates)
sol = trace(GEO(3.0, 0.0, 0.0), t, Tsit5())
retcode: Terminated
Interpolation: specialized 4th order "free" interpolation
t: 12-element Vector{Float64}:
 0.0
 0.0009999885482375654
 0.010999874030613218
 0.0847200068741534
 0.2584697145069613
 0.5208041631478134
 0.8585692079856644
 1.301335693239255
 1.8450542594596342
 2.500904544873359
 3.205963657753308
 3.205963657753308
u: 12-element Vector{StaticArraysCore.SVector{3, Float64}}:
 [3.0, 0.0, 0.0]
 [3.000024874434897, -0.00014500231793512512, 0.0009891069741289906]
 [3.000219552072472, -0.0015939094040692773, 0.010881511759367886]
 [2.998622810748412, -0.012200652379737059, 0.0838008499801834]
 [2.973956981211289, -0.036430212118688306, 0.2538644903645178]
 [2.8840273433844255, -0.06979325687058571, 0.4973255028894392]
 [2.688381209651438, -0.10471165215233715, 0.7689633278293427]
 [2.3340812668082127, -0.13419419981141428, 1.0294151922820813]
 [1.8165327856254772, -0.1448727873486381, 1.1864037247122192]
 [1.1662003693876457, -0.12463772265946296, 1.1446742828995626]
 [0.538221848737286, -0.07307866753877783, 0.8396289358356923]
 [0.538221848737286, -0.07307866753877783, 0.8396289358356923]

Plotting with Makie

Here's a complete example showing how to trace and visualize magnetic field lines using GLMakie:

using GeoCotrans, OrdinaryDiffEqTsit5, Dates
using CairoMakie

# Time for field evaluation
t = DateTime(2020, 1, 1)

# Create figure
fig = Figure(size = (800, 800))
ax = Axis3(fig[1, 1],
    xlabel = "X (Re)",
    ylabel = "Y (Re)",
    zlabel = "Z (Re)",
    title = "IGRF Field Lines at $(Date(t))",
    aspect = :data
)

# Draw Earth (unit sphere)
θ_sphere = range(0, π, length=30)
φ_sphere = range(0, 2π, length=60)
x_sphere = [sin(θ) * cos(φ) for θ in θ_sphere, φ in φ_sphere]
y_sphere = [sin(θ) * sin(φ) for θ in θ_sphere, φ in φ_sphere]
z_sphere = [cos(θ) for θ in θ_sphere, φ in φ_sphere]
surface!(ax, x_sphere, y_sphere, z_sphere, color = :lightblue, alpha = 0.8)

# Trace field lines from different starting positions
L_values = [2.0, 3.0, 4.0, 5.0]  # L-shell values
colors = [:red, :orange, :green, :blue]

for (L, color) in zip(L_values, colors)
    # Trace in both directions from the equator
    for dir in [1, -1]
        sol = trace(GEO(L, 0.0, 0.0), t, Tsit5(); dir = dir)
        # Plot the field line
        plot!(ax, sol; color = color, linewidth = 2, idxs = (1, 2, 3),
            label = dir == 1 ? "L = $L" : nothing)
    end
end

axislegend(ax, position = :rt) # Add legend
limits!(ax, -6, 6, -6, 6, -6, 6) # Set view limits

fig

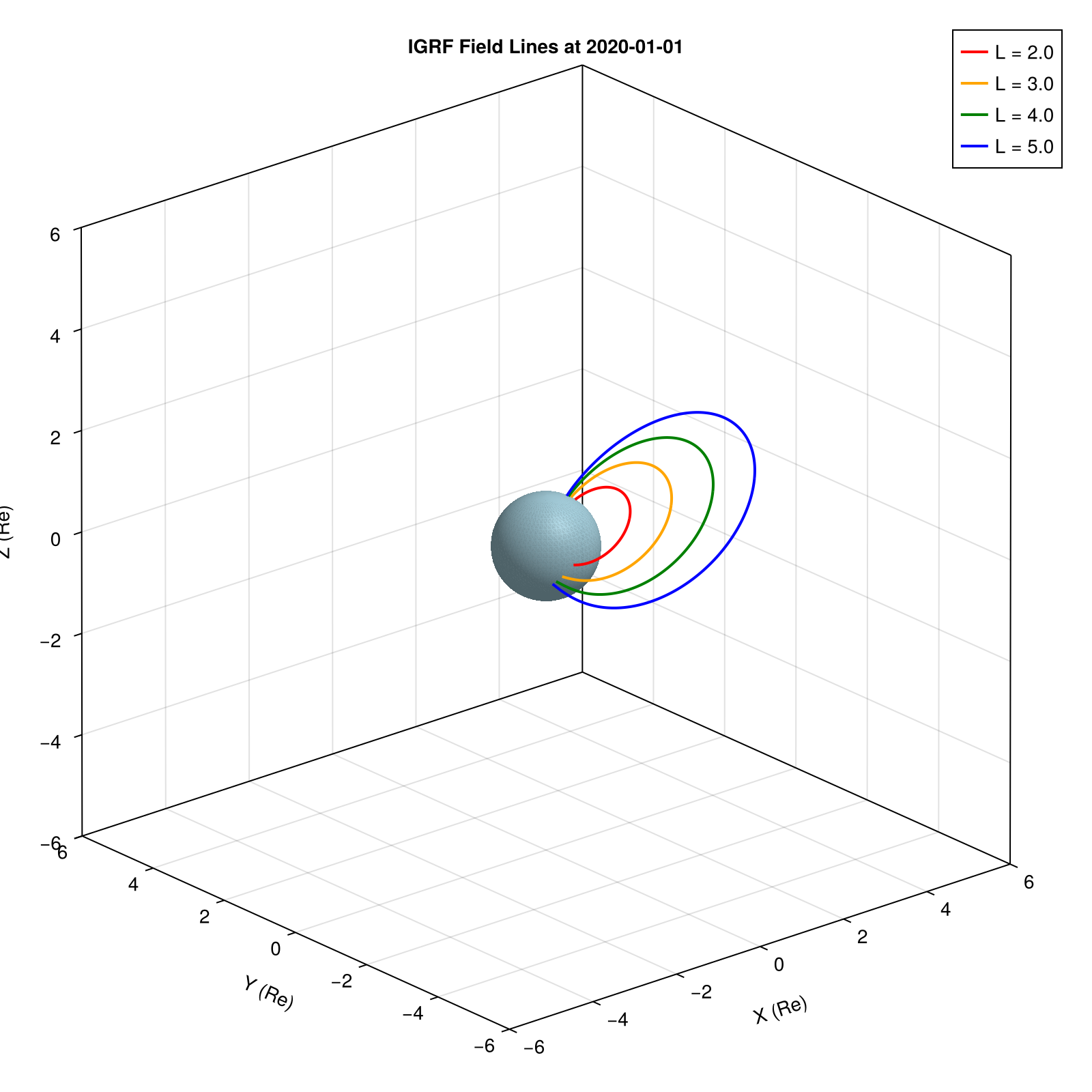

Example block output

2D Visualization

using GeoCotrans, OrdinaryDiffEqTsit5, Dates
using CairoMakie

t = DateTime(2020, 1, 1)

fig = Figure(size = (1000, 500))

# Left panel: Meridional plane (X-Z)
ax1 = Axis(fig[1, 1],
    xlabel = "X (Re)", ylabel = "Z (Re)",
    title = "Field Lines in Meridional Plane",
    aspect = DataAspect()
)

# Draw Earth cross-section
θ_circle = range(0, 2π, length=100)
lines!(ax1, cos.(θ_circle), sin.(θ_circle), color = :lightblue, linewidth = 3)

# Trace field lines
for L in [2.0, 3.0, 4.0, 5.0, 6.0]
    for dir in [1, -1]
        sol = trace(GEO(L, 0.0, 0.0), t, Tsit5(); dir = dir)
        lines!(ax1, sol, idxs = (1, 3), color = :darkblue, linewidth = 1.5)
    end
end

limits!(ax1, -7, 7, -7, 7)

# Right panel: Equatorial plane (X-Y)
ax2 = Axis(fig[1, 2],
    xlabel = "X (Re)", ylabel = "Y (Re)",
    title = "Field Lines in Equatorial Plane",
    aspect = DataAspect()
)

# Draw Earth cross-section
lines!(ax2, cos.(θ_circle), sin.(θ_circle), color = :lightblue, linewidth = 3)

# Starting points slightly off equator to see field line structure
for L in [3.0, 4.0, 5.0]
    for φ in range(0, 2π, length=13)[1:12]
        y0, x0 = L .* sincos(φ)
        # Start slightly above equator
        sol = trace(GEO(x0, y0, 0.1), t, Tsit5(); dir = 1)
        lines!(ax2, sol, idxs = (1, 2), color = :darkgreen, linewidth = 1)
    end
end

limits!(ax2, -7, 7, -7, 7)

fig

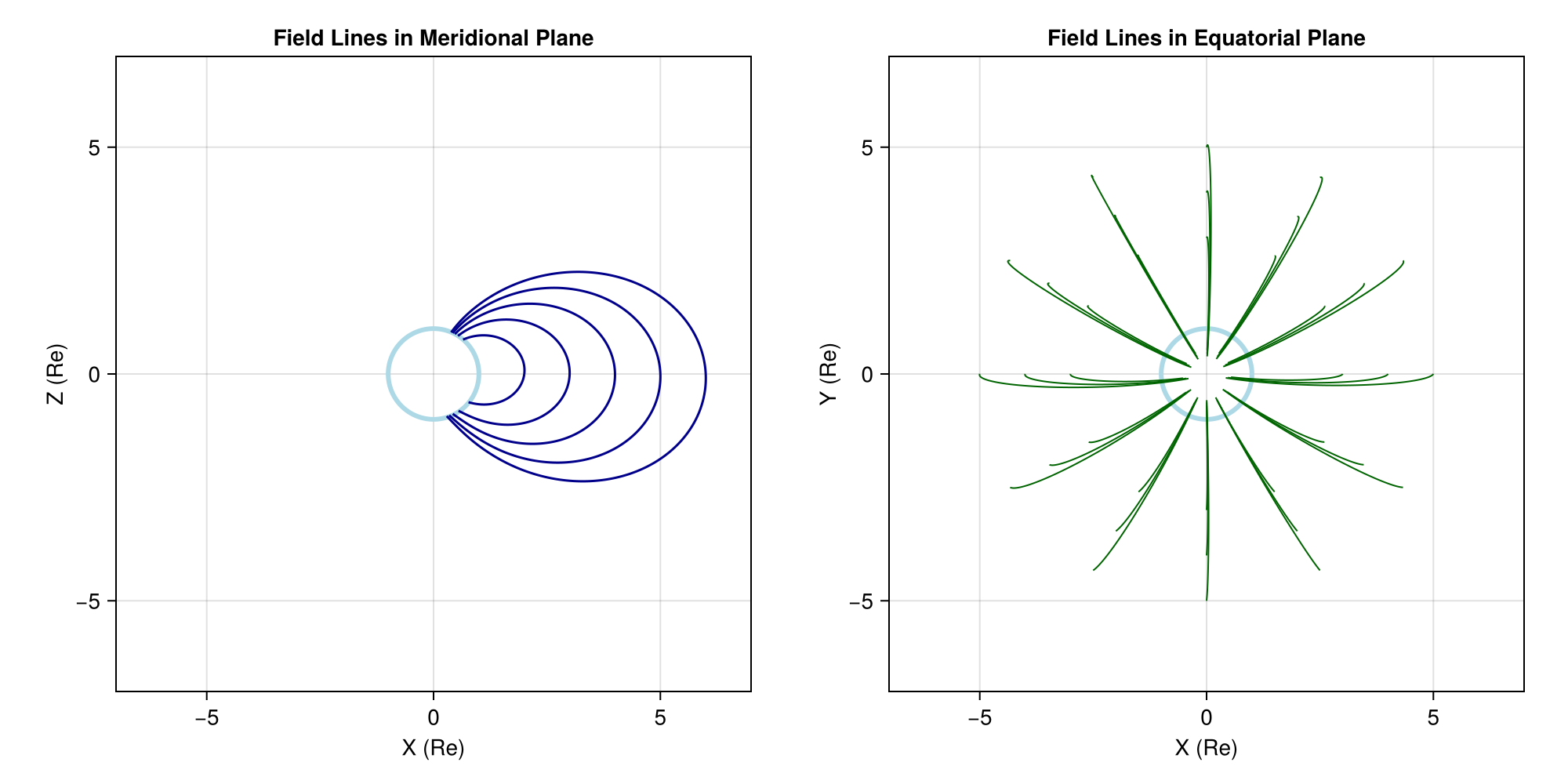

Example block output

API Reference

GeoCotrans.FieldLineTracing.FieldLineProblemFunction
FieldLineProblem(pos, tspan, t; model=IGRF(), dir=1)

Create an ODEProblem for tracing a magnetic field line in model at time t.

  • dir::Int = 1: Tracing direction (+1 for parallel to B, -1 for anti-parallel)

Example

using GeoCotrans, OrdinaryDiffEqTsit5, Dates

t = DateTime(2020, 1, 1)
pos = [3.0, 0.0, 0.0]
prob = FieldLineProblem(pos, (0.0, 50.0), t)
sol = solve(prob, Tsit5())
source
GeoCotrans.FieldLineTracing.FieldLineCallbackFunction
FieldLineCallback(; r0=1.0, rlim=10.0)

Create a callback for terminating field line integration at boundaries.

Keyword Arguments

  • r0 = 1.0: Inner radial boundary (Earth radii)
  • rlim = 10.0: Outer radial boundary (Earth radii)
source
GeoCotrans.FieldLineTracing.traceFunction
trace(pos, t, solver; kwargs...) :: ODESolution

Trace a magnetic field line using the specified SciML solver.

Keyword Arguments

  • model = IGRF(): Magnetic field model to use
  • dir = 1: Tracing direction (+1 for parallel to B, -1 for anti-parallel)
  • r0 = 1.0: Inner radial boundary (Earth radii)
  • rlim = 10.0: Outer radial boundary (Earth radii)
  • maxs = 100.0: Maximum arc length for integration
  • in = getcsys(pos): Input coordinate system (Reference frame and coordinate representation)
  • Additional keyword arguments are passed to solve()

Example

using GeoCotrans, OrdinaryDiffEqTsit5
sol = trace([3.0, 0.0, 0.0], t, Tsit5())
source
