DMSPData.jl

Access and process Defense Meteorological Satellite Program (DMSP) data.

DMSPData.S1_Dataset
DMSPData.S4_Dataset
DMSPData.SSJ_Dataset

Installation

using Pkg
Pkg.add("DMSPData")

Madrigal

8100 is the instrument ID for DMSP in Madrigal database.

using DMSPData
using DMSPData.Madrigal
using Dates

t0 = DateTime("2010-01-10T00:04")
t1 = DateTime("2010-01-10T00:35")


kinst = 8100
get_experiments(kinst, t0, t1)
get_instrument_files(kinst, t0, t1)

19-element view(::CSV.File, [129248, 129249, 283211, 283212, 283213, 283214, 283215, 283216, 283217, 283218, 283219, 283220, 283221, 283222, 283223, 283224, 283225, 283226, 283227]) with eltype CSV.Row:
 (name = "dms_ut_20100110_16.002.hdf5", id = 100015626, kindat = 10246, category = 1, status = false, access = true, permission = true, mod_date = Dates.DateTime("2024-10-16T00:00:00"), mod_time = 164438)
 (name = "dms_ut_20100110_18.002.hdf5", id = 100015626, kindat = 10248, category = 1, status = false, access = true, permission = true, mod_date = Dates.DateTime("2024-10-16T00:00:00"), mod_time = 164438)
 (name = "dms_20100110_15s1.001.hdf5", id = 100032230, kindat = 10115, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 121355)
 (name = "dms_20100110_16s1.001.hdf5", id = 100032230, kindat = 10116, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 125847)
 (name = "dms_20100110_17s1.001.hdf5", id = 100032230, kindat = 10117, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 134409)
 (name = "dms_20100110_18s1.001.hdf5", id = 100032230, kindat = 10118, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 141906)
 (name = "dms_20100110_15s4.001.hdf5", id = 100032230, kindat = 10145, category = 3, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 143126)
 (name = "dms_20100110_16s4.001.hdf5", id = 100032230, kindat = 10146, category = 3, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 144149)
 (name = "dms_20100110_17s4.001.hdf5", id = 100032230, kindat = 10147, category = 3, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 145305)
 (name = "dms_20100110_18s4.001.hdf5", id = 100032230, kindat = 10148, category = 3, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 150157)
 (name = "dms_20100110_16e.001.hdf5", id = 100032230, kindat = 10216, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 155845)
 (name = "dms_20100110_17e.001.hdf5", id = 100032230, kindat = 10217, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 165642)
 (name = "dms_20100110_18e.001.hdf5", id = 100032230, kindat = 10218, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2016-09-07T00:00:00"), mod_time = 175327)
 (name = "dms_ut_20100110_15.001.hdf5", id = 100032230, kindat = 10245, category = 3, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-03-26T00:00:00"), mod_time = 135845)
 (name = "dms_ut_20100110_15.002.hdf5", id = 100032230, kindat = 10245, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-06-05T00:00:00"), mod_time = 133400)
 (name = "dms_20100210_17s4.002.hdf5", id = 100032230, kindat = 10147, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-11-01T00:00:00"), mod_time = 153409)
 (name = "dms_20100210_15s4.002.hdf5", id = 100032230, kindat = 10145, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-11-01T00:00:00"), mod_time = 153410)
 (name = "dms_20100210_18s4.002.hdf5", id = 100032230, kindat = 10148, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-11-01T00:00:00"), mod_time = 153411)
 (name = "dms_20100210_16s4.002.hdf5", id = 100032230, kindat = 10146, category = 1, status = false, access = true, permission = false, mod_date = Dates.DateTime("2018-11-01T00:00:00"), mod_time = 153411)

Quicklook

Here we reproduce the figure 3 in F16 10 January 2010 first auroral crossing of the day (Redmon et al. [1]).

s1_ds = S1_Dataset(16, t0, t1)
s4_ds = S4_Dataset(16, t0, t1)
ssj_ds = SSJ_Dataset(16, t0, t1)

MFDataset
  Path: ["/tmp/jl_wNsRXG/dms_20100110_16e.001.hdf5"]
  Variables (18):
    el_i_ener
    el_i_flux
    el_m_ener
    gdalt
    gdlat
    glon
    ion_i_ener
    ion_i_flux
    ion_m_ener
    mlat
    ...

using DimensionalData
using CairoMakie, SpacePhysicsMakie

vars = ("el_d_ener", "el_i_ener", "el_m_ener", "ion_d_ener", "ion_i_ener", "ion_m_ener", "mlat")
ds = DimStack(ssj_ds, vars; data_params = DMSPData.ssj_metadata_patch)
for A in (ds.el_d_ener, ds.ion_d_ener)
    A[A .< 1e3] .= NaN
end
let colormap = :turbo, f = Figure(; size = (1200, 1000))
    faxs = tplot(f, ds; colormap)
    ylims!(faxs.axes[2], 1e9, 1e13)
    ylims!(faxs.axes[5], 1e9, 1e13)
    f
end

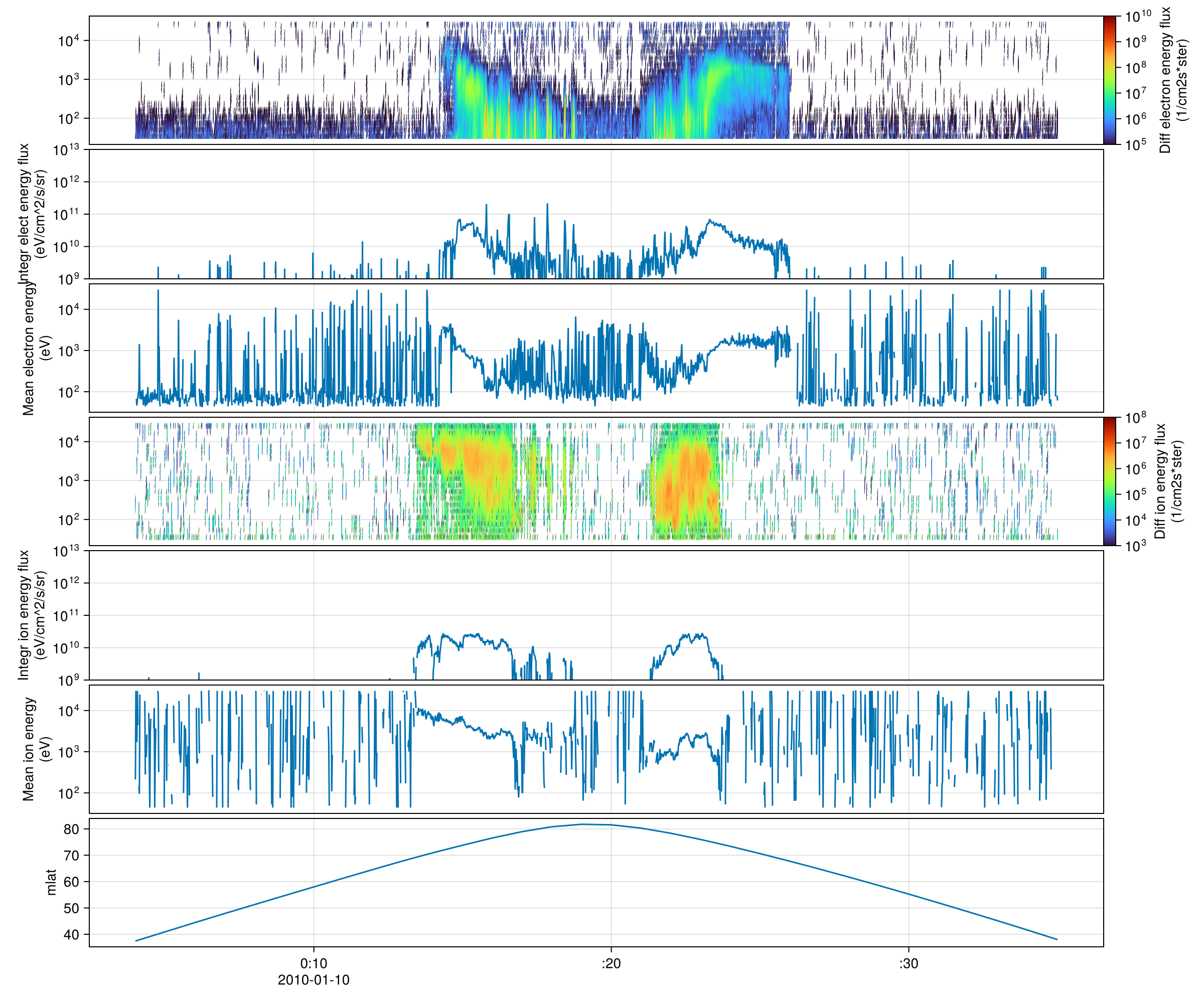

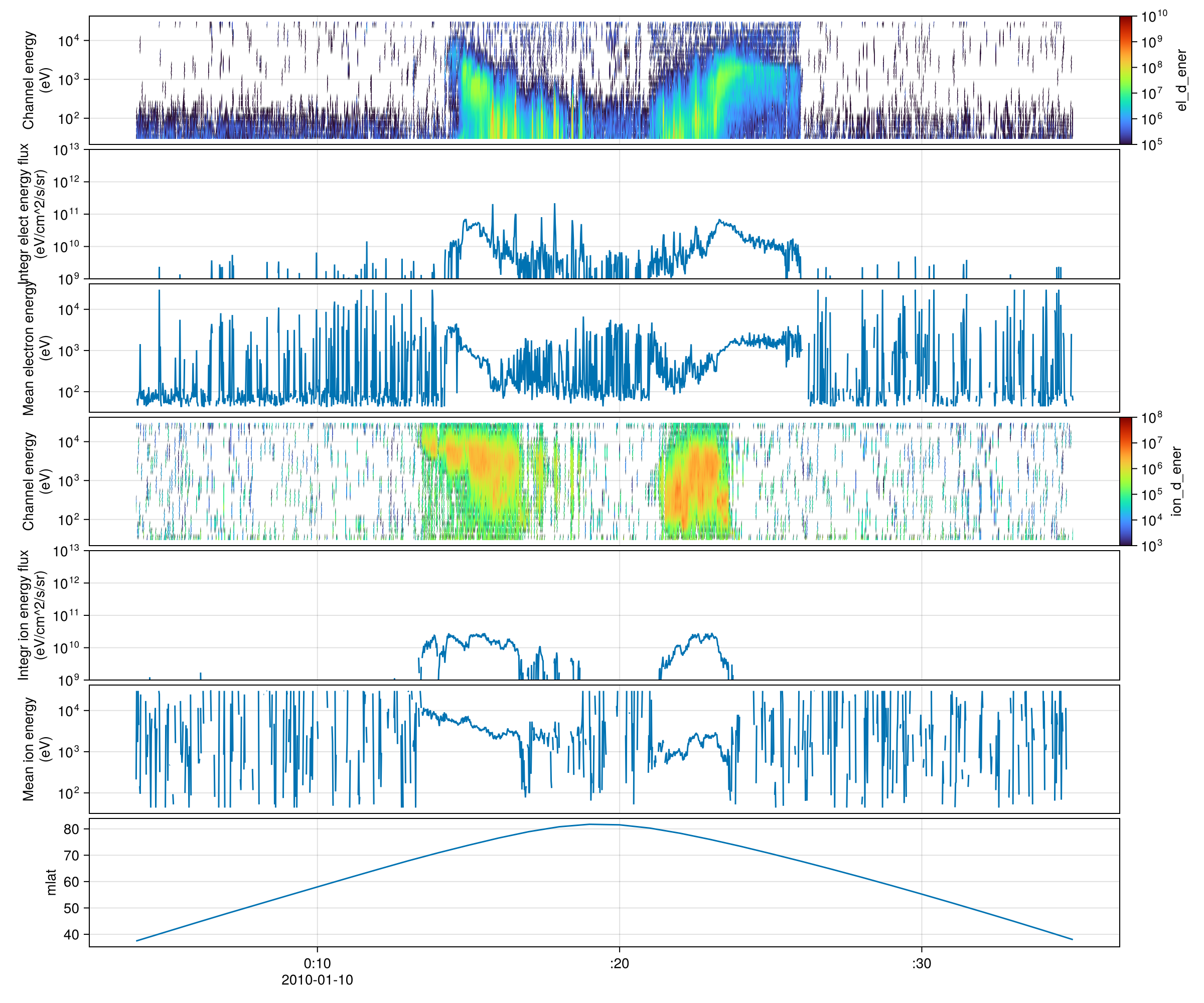

F16 10 January 2010 first auroral crossing of the day. (a) Background adjusted electron differential energy flux (jE) (eV/cm2 sr ΔeV s), (b) integrated electron energy flux (JE) (eV/cm2 sr s), (c) average electron energy (Eavg) (eV), (d–f) same quantities for ions, and (g) AACGM latitude and MLT (right y axis). - Redmon et al. [1]

Calculations

# Computing magnetic field coordinates
# L-shell, MLT, Blocal, Bmin, Lstar, and XJ
# See https://juliaspacephysics.github.io/IRBEM.jl/dev/#Computing-magnetic-field-coordinates
using IRBEM

gdalt = DimArray(ssj_ds["gdalt"])
gdlat = DimArray(ssj_ds["gdlat"])
glon = DimArray(ssj_ds["glon"])
times = gdalt.dims[1]
make_lstar.(times, GDZ.(gdalt, gdlat, glon), ((; Kp = 40.0),); kext = "T89")

┌ 1861-element DimArray{@NamedTuple{Lm::Float64, Lstar::Float64, Blocal::Float64, Bmin::Float64, XJ::Float64, MLT::Float64}, 1} ┐
├──────────────────────────────────────────────────────────────────────── dims ┤
  ↓ Ti Sampled{Dates.DateTime} [Dates.DateTime("2010-01-10T00:04:00"), …, Dates.DateTime("2010-01-10T00:35:00")] ForwardOrdered Irregular Points
└──────────────────────────────────────────────────────────────────────────────┘
 2010-01-10T00:04:00  …  (Lm = 1.83817, Lstar = -1.0e31, Blocal = 30117.3, Bmin = 4693.84, XJ = 2.0752, MLT = 18.4732)
 2010-01-10T00:04:01     (Lm = 1.84072, Lstar = -1.0e31, Blocal = 30142.4, Bmin = 4672.94, XJ = 2.08263, MLT = 18.4722)
 2010-01-10T00:04:02     (Lm = 1.84329, Lstar = -1.0e31, Blocal = 30167.5, Bmin = 4652.09, XJ = 2.09007, MLT = 18.4712)
 2010-01-10T00:04:03     (Lm = 1.84621, Lstar = -1.0e31, Blocal = 30192.6, Bmin = 4631.28, XJ = 2.09845, MLT = 18.4703)
 2010-01-10T00:04:04     (Lm = 1.849, Lstar = -1.0e31, Blocal = 30217.7, Bmin = 4610.52, XJ = 2.10647, MLT = 18.4693)
 ⋮                    ⋱
 2010-01-10T00:34:56     (Lm = 1.71472, Lstar = -1.0e31, Blocal = 37126.2, Bmin = 5786.82, XJ = 1.93641, MLT = 7.35639)
 2010-01-10T00:34:57     (Lm = 1.71178, Lstar = -1.0e31, Blocal = 37108.7, Bmin = 5816.67, XJ = 1.92835, MLT = 7.35541)
 2010-01-10T00:34:58     (Lm = 1.70854, Lstar = -1.0e31, Blocal = 37091.3, Bmin = 5846.61, XJ = 1.9195, MLT = 7.35442)
 2010-01-10T00:34:59     (Lm = 1.70577, Lstar = -1.0e31, Blocal = 37073.8, Bmin = 5876.65, XJ = 1.91187, MLT = 7.35344)
 2010-01-10T00:35:00  …  (Lm = 1.70299, Lstar = -1.0e31, Blocal = 37056.2, Bmin = 5906.78, XJ = 1.90423, MLT = 7.35246)

API

DMSPData.S1_Dataset — Method

Dataset for electron density and ion velocity with 1 second cadence

source

DMSPData.S4_Dataset — Method

Dataset for ion and electron temperature, electric potential, composition with 4 second cadence

source

DMSPData.SSJ_Dataset — Method

Dataset for Special Sensor J/4 - Precipitating Ion and Electron (30ev - 30 KeV) Monitor

Experiment Notes

ssj_ds.notes

Catalog information from record 0:

KRECC       2001 Catalogue Record, Version 1
KINSTE     8100 Defense Meteorological Satellite Program
MODEXP    10216
IBYRE       2010 Beginning year
IBDTE        110 Beginning month and day
IBHME          0 Beginning UT hour and minute
IBCSE          0 Beginning centisecond
IEYRE       2010 Ending year
IEDTE        111 Ending month and day
IEHME          0 Ending UT hour and minute
IECSE          0 Ending centisecond
CPI      Patricia Doherty
IBYRT               2010 Beginning year
IBDTT               0110 Beginning month and day
IBHMT               0000 Beginning UT hour and minute
IBCST               0000 Beginning centisecond
IEYRT               2010 Ending year
IEDTT               0111 Ending month and day
IEHMT               0000 Ending UT hour and minute
IECST               0000 Ending centisecond

Header information from record 1:

KRECH               3002 Header Record, Version 3
KINST     8100 Defense Meteorological Satellite Program
KINDAT    10216 F16 flux/energy values
CKINDAT This file contains all flux/energy parameters measured on the DMSP
CKINDAT spacecraft.
CKINDAT This file is all NASA level 1 data - data quality is not included.
CKINDAT Background counts have been
CKINDAT subtracted from these values according to the following algorithm:
CKINDAT Looks for a nearly constant
CKINDAT count rate in the higher energy channels of the electron or ion
CKINDAT spectrum. If such a nearly constant
CKINDAT count rate is found, then that rate plus one sigma of the rate is
CKINDAT subtracted from all counts in the
CKINDAT given spectrum. That background is then cached and used for future
CKINDAT measurements that do not fit that
CKINDAT criteria. If a cached background level is used and too many values
CKINDAT would be negative, the background
CKINDAT is reduced by the average negative value. In any case, counts are
CKINDAT never set below zero.
IBYRT               2010 Beginning year
IBDTT                110 Beginning month and day
IBHMT                  0 Beginning UT hour and minute
IBCST                  0 Beginning centisecond
IEYRT               2010 Ending year
IEDTT                111 Ending month and day
IEHMT                  0 Ending UT hour and minute
IECST                  0 Ending centisecond
C 1D Parameters:
KODS(0)           54 Magnetic local time                              hour
KODS(1)          110 Geodetic altitude (height)                       km
KODS(2)          160 Geodetic latitude of measurement                 deg
KODS(3)          170 Geographic longitude of measurement              deg
KODS(4)          228 Magnetic latitude                                deg
KODS(5)          248 Magnetic Longitude                               deg
KODS(6)         2172 Integrated elect num flux (1/cm2s*ster)          numFlux
KODS(7)         2174 Integrated ion num flux (1/cm2s*ster)            numFlux
KODS(8)         2176 Integr elect energy flux (eV/cm2s*ster)          enFlux
KODS(9)         2178 Integr ion energy flux (eV/cm2s*ster)            enFlux
KODS(10)        2182 Mean electron energy                             eV
KODS(11)        2184 Mean ion energy                                  eV
KODS(12)        4200 Satellite id                                     N/A
C 2D Parameters:
KODM(0)         2160 Diff electron num flux (1/cm2eVs*ster)           numFlux
KODM(1)         2162 Diff electron energy flux (1/cm2s*ster)          enFlux
KODM(2)         2164 Diff ion num flux (1/cm2eVs*ster)                numFlux
KODM(3)         2166 Diff ion energy flux (1/cm2s*ster)               enFlux
KODM(4)         2168 Channel central energy                           eV
KODM(5)         2171 Channel spacing energy                           eV
CANALYST Kevin Martin
CANDATE  Tue Jun 26 19:28:30 2018 UT
IBYRT               2010 Beginning year
IBDTT               0110 Beginning month and day
IBHMT               0000 Beginning UT hour and minute
IBCST               0000 Beginning centisecond
IEYRT               2010 Ending year
IEDTT               0111 Ending month and day
IEHMT               0000 Ending UT hour and minute
IECST               0000 Ending centisecond

Bibliography

[1]: R. J. Redmon, W. F. Denig, L. M. Kilcommons and D. J. Knipp. New DMSP Database of Precipitating Auroral Electrons and Ions. Journal of Geophysical Research: Space Physics 122, 9056–9067 (2017).
